Mazda A/C compressor

Type HS18N 12V HS18N 6 Grooves Auto A/C Compressor BBN2-61-450D BBN261450D F500RN8BA05 for Mazda 3 2.3L/2.5L 2010-2014 for Mazda 5 2012-2015 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

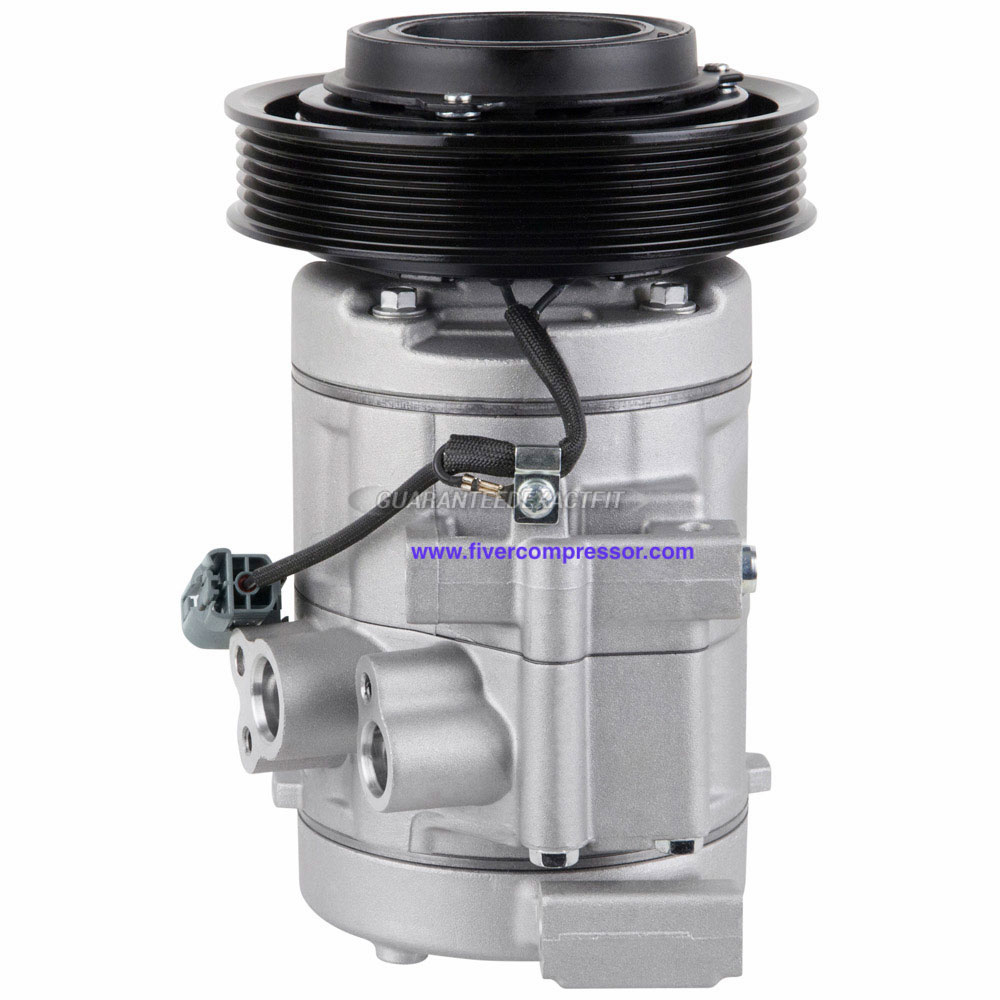

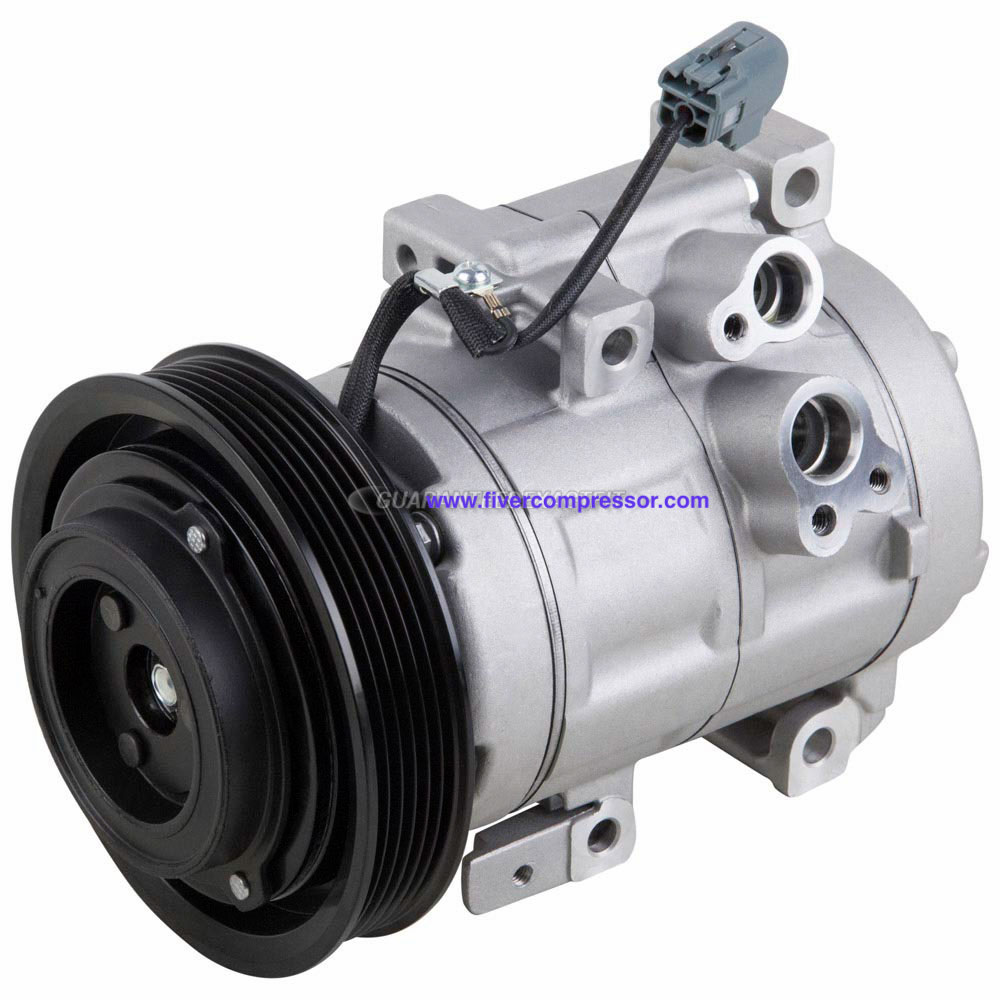

Mazda HS18N A/C compressor

12V HS18N 6 Grooves Auto A/C Compressor BBN2-61-450D BBN261450D F500RN8BA05 for Mazda 3 2.3L/2.5L 2010-2014 for Mazda 5 2012-2015

OE / Part number
BBN2-61-450D, BBN261450D, F500RN8BA05, F500-RN8BA-05

Auto AC Compressor for Mazda 3; Mazda 5 A/C Compressor; Automotive A/C Compressor Manufacturer

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeHS18N
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeHS18N
Pulley Groove6PK
Coil Voltage12V
OE / Part numberBBN2-61-450D, BBN261450D, F500RN8BA05, F500-RN8BA-05

§ 04

Product details

12V HS18N 6 Grooves Auto A/C Compressor BBN2-61-450D BBN261450D F500RN8BA05 for Mazda 3 2.3L/2.5L 2010-2014 for Mazda 5 2012-2015


 Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter134.0 MM
Compressor Mount Hole Quantity4

Mounting Type

Pulley Grooves

Bolt Tangent

6



VEHICLE FITMENT

2010 Mazda 3 2.3L Engine
2011 Mazda 3 2.3L Engine
2012 Mazda 3 2.3L Engine
2013 Mazda 3 2.3L Engine

2010 Mazda 3 2.5L Engine

2011 Mazda 3 2.5L Engine

2012 Mazda 3 2.5L Engine

2013 Mazda 3 2.5L Engine

2014 Mazda 3 2.5L Engine


2012 Mazda 5 All Models

2013 Mazda 5 All Models

2014 Mazda 5 All Models

2015 Mazda 5 All Models


Alternated OE Codes: BBN2-61-450D BBN261450D F500RN8BA05 F500-RN8BA-05
