Mazda A/C compressor

Type DKS17DS 12V DKS17DS Type 6 Grooves Auto A/C Compressor GS4H-61-450A, GS4H61450,GS4H61450A, GS4H61450B, GS4H61450C for Mazda 6 3.7L 2009-2013 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

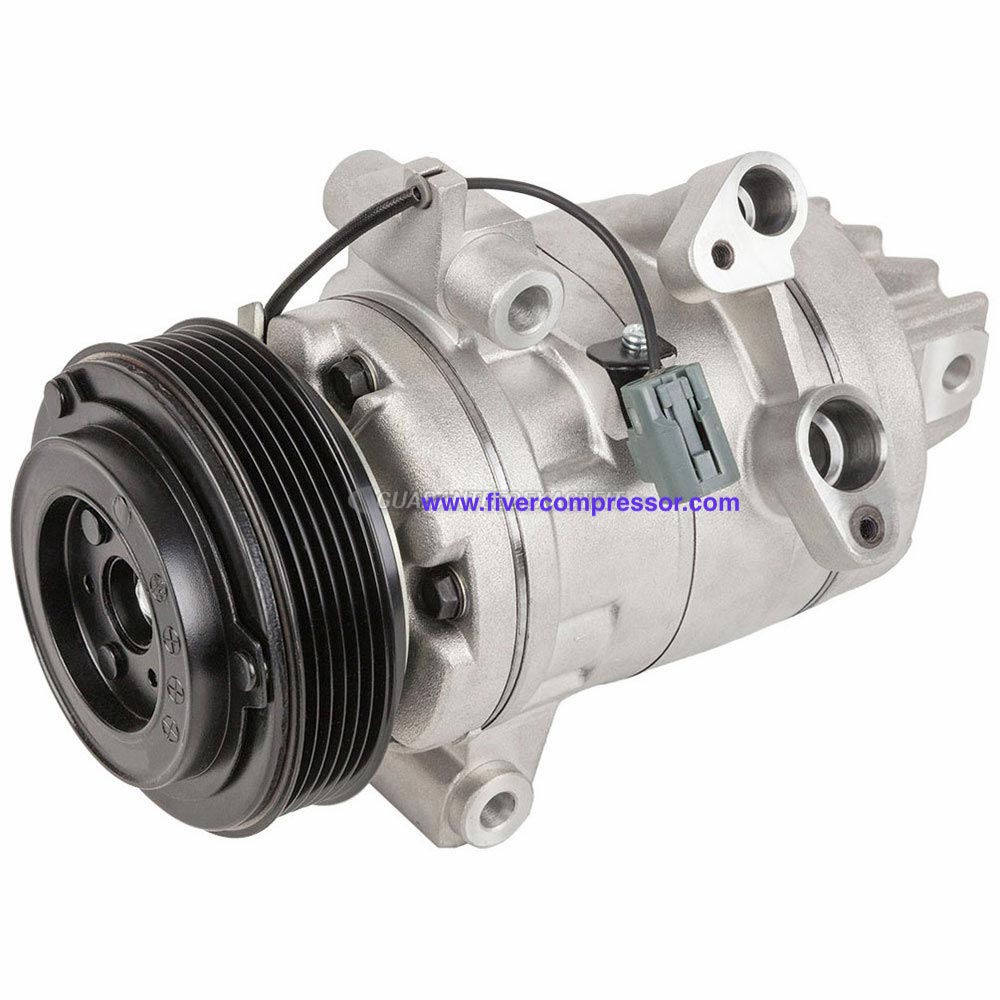

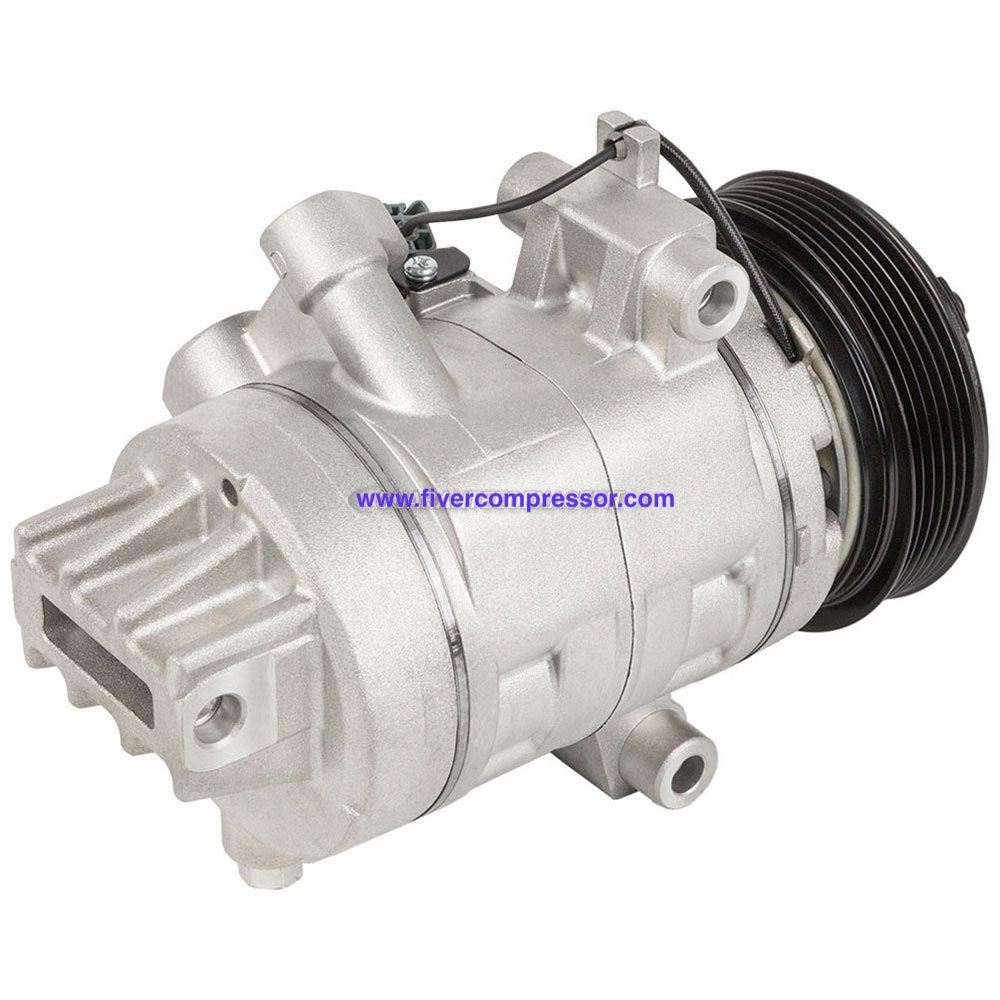

Mazda DKS17DS A/C compressor

12V DKS17DS Type 6 Grooves Auto A/C Compressor GS4H-61-450A, GS4H61450,GS4H61450A, GS4H61450B, GS4H61450C for Mazda 6 3.7L 2009-2013

OE / Part number
GS4H-61-450A, GS4H61450, GS4H61450A, GS4H61450B, GS4H61450C

12V DKS17DS Type 6 Grooves Auto A/C Compressor GS4H-61-450A, GS4H61450,GS4H61450A, GS4H61450B, GS4H61450C for Mazda 6 3.7L 2009-2013 — aftermarket A/C compressor OE GS4H-61-450A supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeDKS17DS
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeDKS17DS
Pulley Groove6PK
Coil Voltage12V
OE / Part numberGS4H-61-450A, GS4H61450, GS4H61450A, GS4H61450B, GS4H61450C

§ 04

Product details

12V DKS17DS Type 6 Grooves Auto A/C Compressor GS4H-61-450A, GS4H61450,GS4H61450A, GS4H61450B, GS4H61450C for Mazda 6 3.7L 2009-2013

Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter4.3125 IN

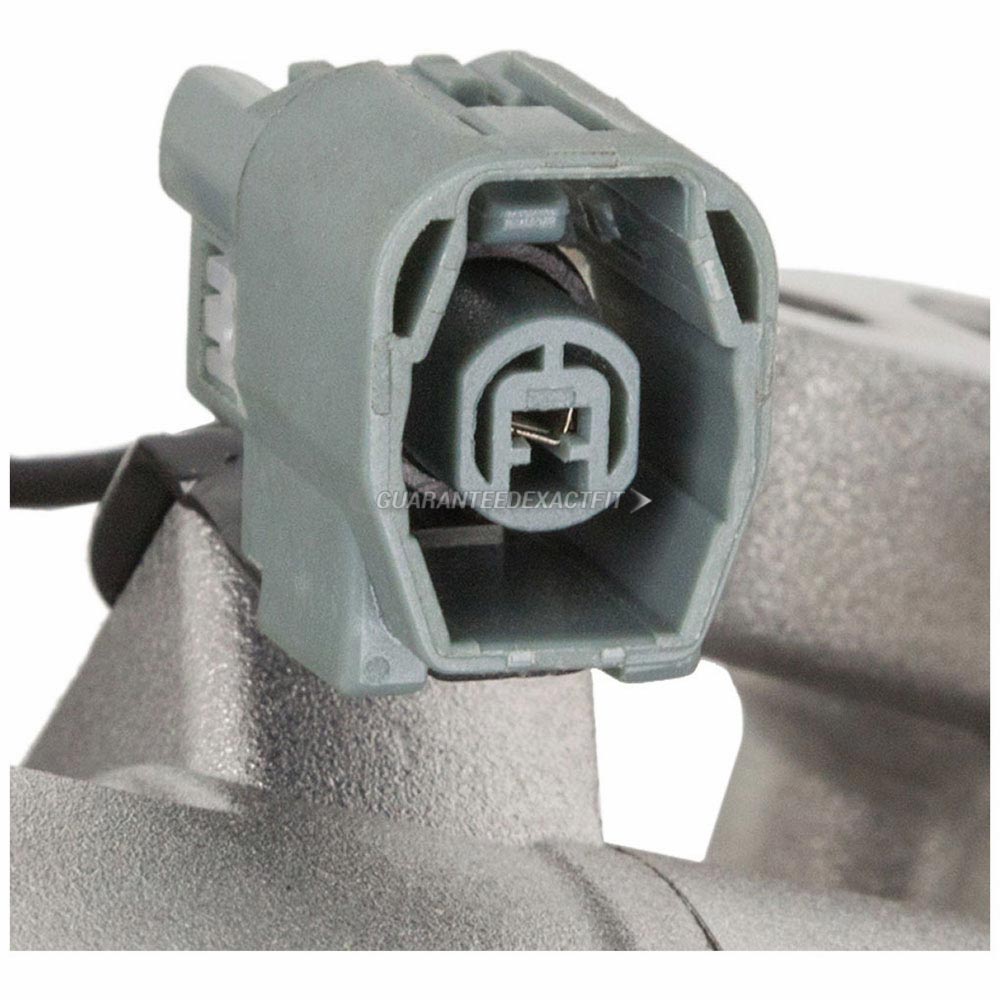

Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 46
Compressor TypeDKS17S
Discharge Port TypeO-Ring
Distance From Clutch To Mounting Flange1.65625 in
Mount Distance MM42.164 mm

Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM109.474 mm
Pulley Groove Quantity6
Pulley Lip Diameter4.3125 IN
Pulley Ridge Diameter4.3125 IN
Refrigerant TypeR134a



VEHICLE FITMENT

2009 Mazda 6 3.7L Engine
2010 Mazda 6 3.7L Engine
2011 Mazda 6 3.7L Engine
2012 Mazda 6 3.7L Engine

2013 Mazda 6 3.7L Engine


Alternate/OEM Part Number(s): GS4H61450, GS4H61450A, GS4H61450B, GS4H61450C
