New OEM HCC-RS13 PV6 HVAC A/C Compressor KD4561450, KD4561450A BFD161450 for Mazda CX-5 2013-2020
OE KD4561450, KD4561450A, HCC-RS13
FIVER AUTOPARTS CO.,LTD
Mazda A/C compressor
6PK · 12V
Auto AC Compressor for Mazda 6 2.3L Turbo; Mazda 3 A/C Compressor; Automotive A/C Compressor Supplier
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

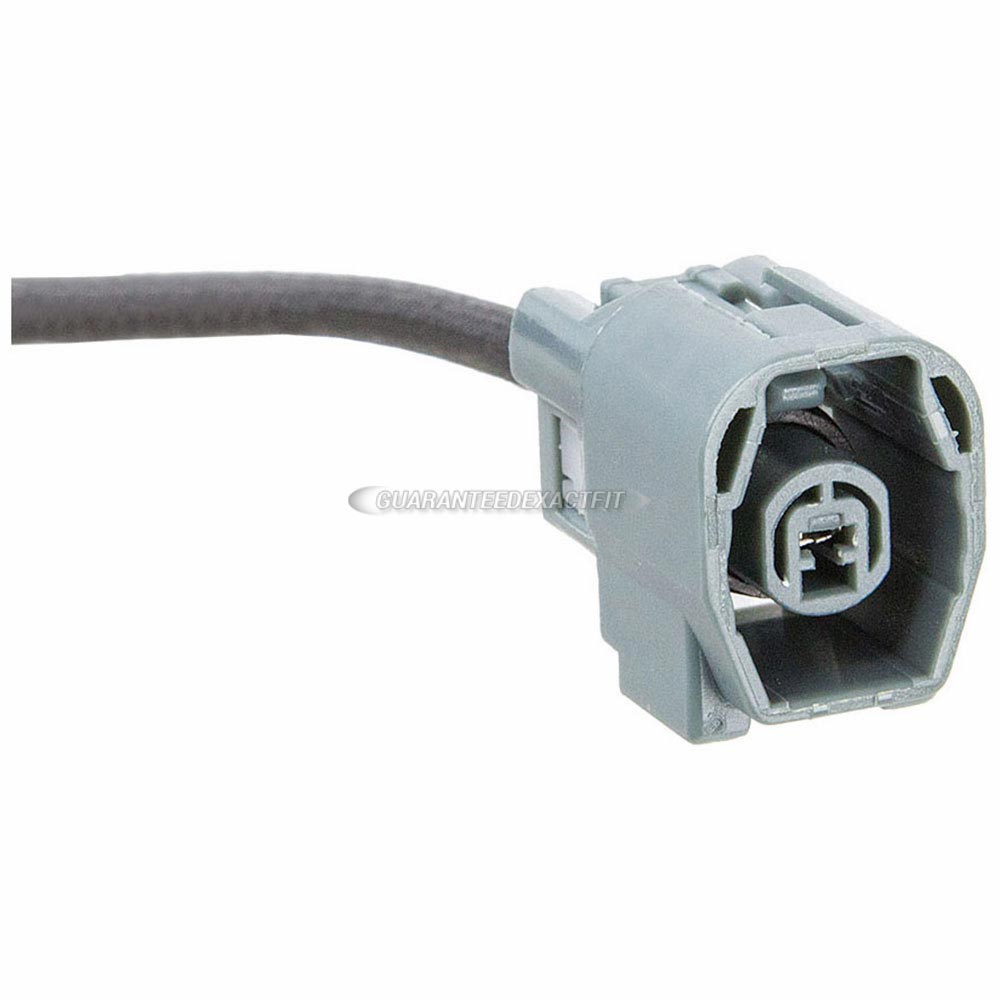

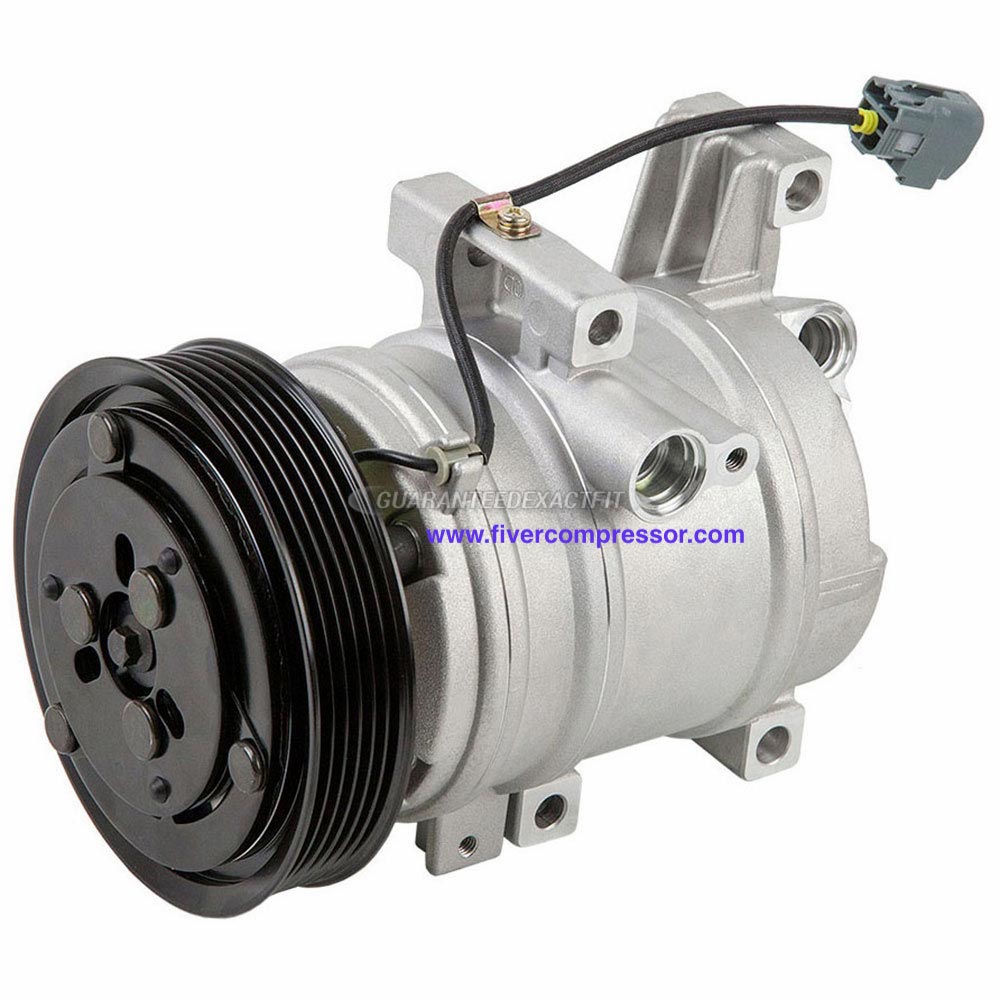

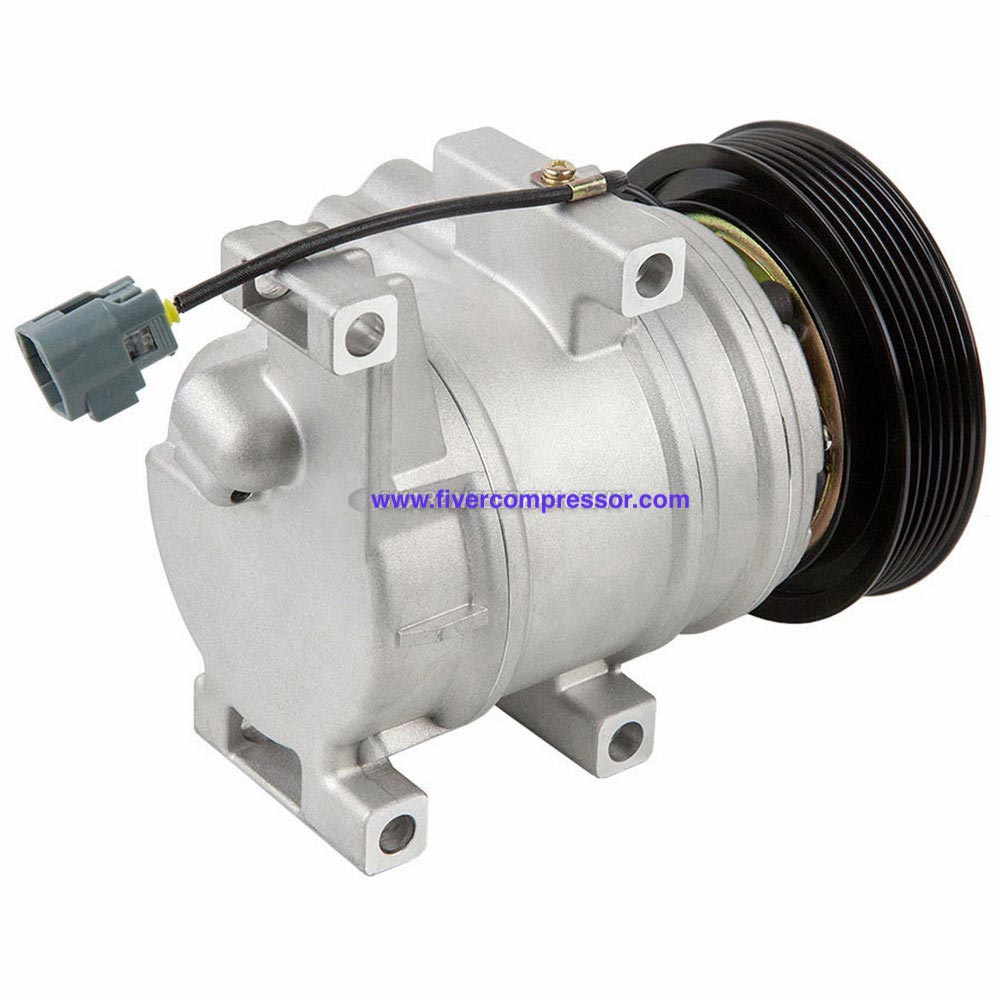

H12A1AK4DW 12V 6PK GP9A61K00, GP9A61K00A, GP9A61K00B Auto A/C Compressor for Mazda 6 2.3L Turbo 2006-2007 Compressor Assy for Mazda 3 2007-2009

| Specifications | |
|---|---|
| Clutch Included | Included |
| Clutch Maximum Diameter | 4.88 IN |
| Coil Clock Position | 1 Wire Lead |
| Coil Voltage | 12 2H |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | H12A1AK4DW |
| Distance From Clutch To Mounting Flange | 1.390625 in |
| Oil Filled | Yes |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 123.83 MM |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.88 IN |
| Pulley Ridge Diameter | 4.88 IN |
| Refrigerant Type | R134a |
| Terminal Type | Pin |
| Type | Matsushita/Panasonic |
2006 Mazda 6 2.3L Turbo Models
2007 Mazda 6 2.3L Turbo Models
2007 Mazda 3 Mazdaspeed
2008 Mazda 3 Mazdaspeed
2009 Mazda 3 Mazdaspeed
Alternate/OEM Part Number(s): GP9A61K00, GP9A61K00A, GP9A61K00B
§ 05
OE KD4561450, KD4561450A, HCC-RS13
OE D09W61450, 88310WB001
OE TK4861450, KD4561450, KD4561450A
