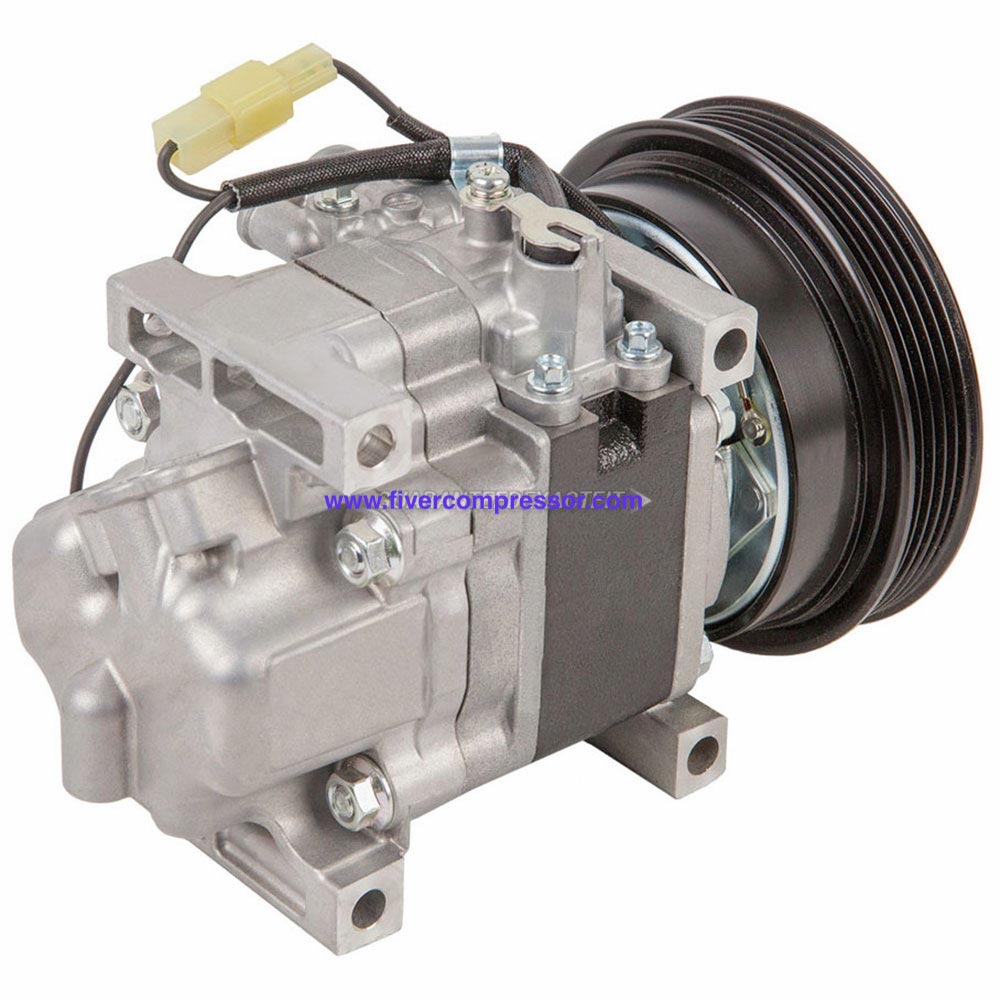

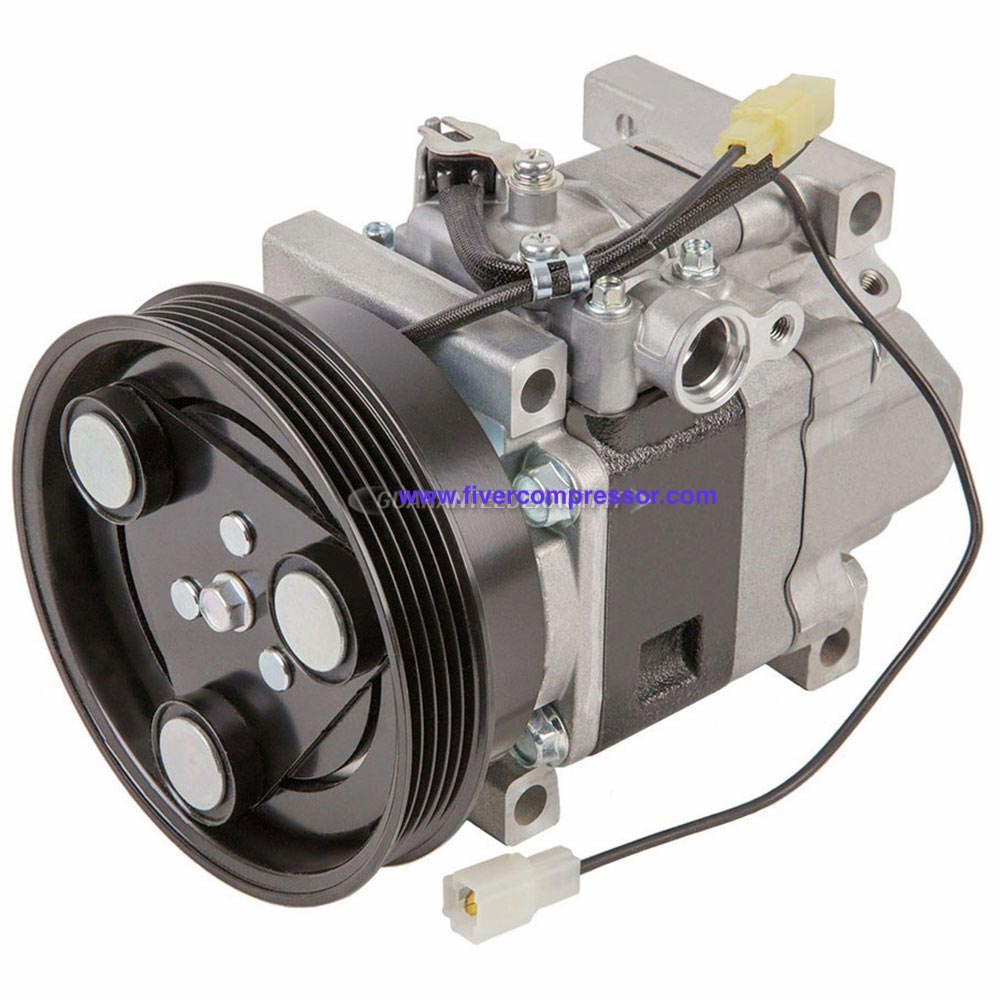

Mazda A/C compressor

Type PANASONIC 12V 5PK Auto A/C Compressor B25F61450B, B26K61450D, C10061450A AC Compressor for Mazda Protege 1999-2003 Compressor Assy for Mazda Protege… 5PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Mazda PANASONIC A/C compressor

12V 5PK Auto A/C Compressor B25F61450B, B26K61450D, C10061450A AC Compressor for Mazda Protege 1999-2003 Compressor Assy for Mazda Protege 5 2002-2003

OE / Part number
B25F61450B, B26K61450D, C10061450A, 19192917, B26K61450B, C10061K00

Auto AC Compressor for Mazda Protege; Mazda Protege 5 A/C Compressor; A/C Compressor manufacturer China

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypePANASONIC
Pulley Groove5PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypePANASONIC
Pulley Groove5PK
Coil Voltage12V
OE / Part numberB25F61450B, B26K61450D, C10061450A, 19192917, B26K61450B, C10061K00

§ 04

Product details

12V 5PK Auto A/C Compressor B25F61450B, B26K61450D, C10061450A AC Compressor for Mazda Protege 1999-2003 Compressor Assy for Mazda Protege 5 2002-2003

 Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter4.859375 in
Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 100
Compressor TypeH12A0AH4JU

Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM133.350 MM
Pulley Groove Quantity5

TypeMatsushita/Panasonic
VEHICLE FITMENT


1999 Mazda Protege 1.8L Engine - 5 Groove Pulley
2000 Mazda Protege 1.8L Engine - 5 Groove Pulley

2001 Mazda Protege 1.8L and 2.0L
2002 Mazda Protege 1.8L and 2.0L
2003 Mazda Protege 1.8L and 2.0L

2002 Mazda Protege5 2.0L Engine

2003 Mazda Protege5 2.0L Engine

Alternate/OEM Part Number(s): 19192917, B26K61450B, B26K61450D, C10061K00
