AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD

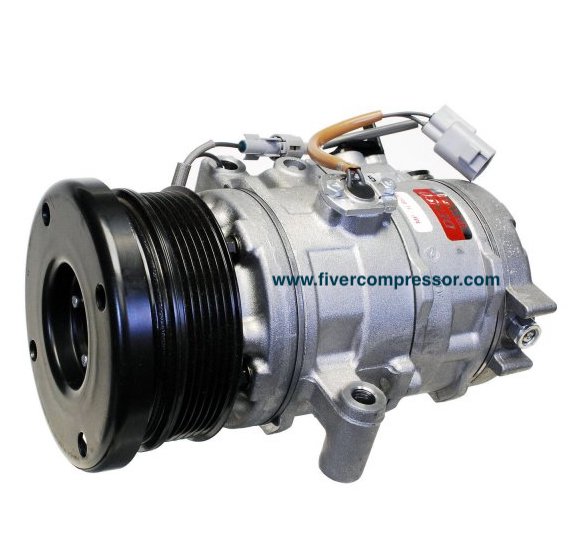

Toyota A/C compressor
6PK · 12V
This Compressor is a Aftermarket Replacement for Air Conditioning Compressor 883100C100, 883200C140,4471908001 for Toyota SEQUOIA V8 4.7L/ 5.8L 2008-2009
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04
10SR19C 6PK-12V Air Conditioning Compressor 883100C100, 883200C140,4471908001 for Toyota SEQUOIA V8 4.7L/ 5.8L 2008-2009

| Specifications | |
|---|---|
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 110.0 mm |
| Compressor Mount Hole Quantity | 3 |
| Pulley Belt Type | Serpentine 6PK |
| Mounting Type | Bolt Tangent |
Toyota Sequoia UCK35/UCK45 2004-2007
Toyota Sequoia UCK60/UCK65 2007-2009
§ 05
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
