Toyota A/C compressor

Type 10S20C 10S20C Air Conditioning Compressor 883100C061, 8831035881, 883106A161, 883200C070, 883200C07084, 883200C100, 883200C101, 883206A110… 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

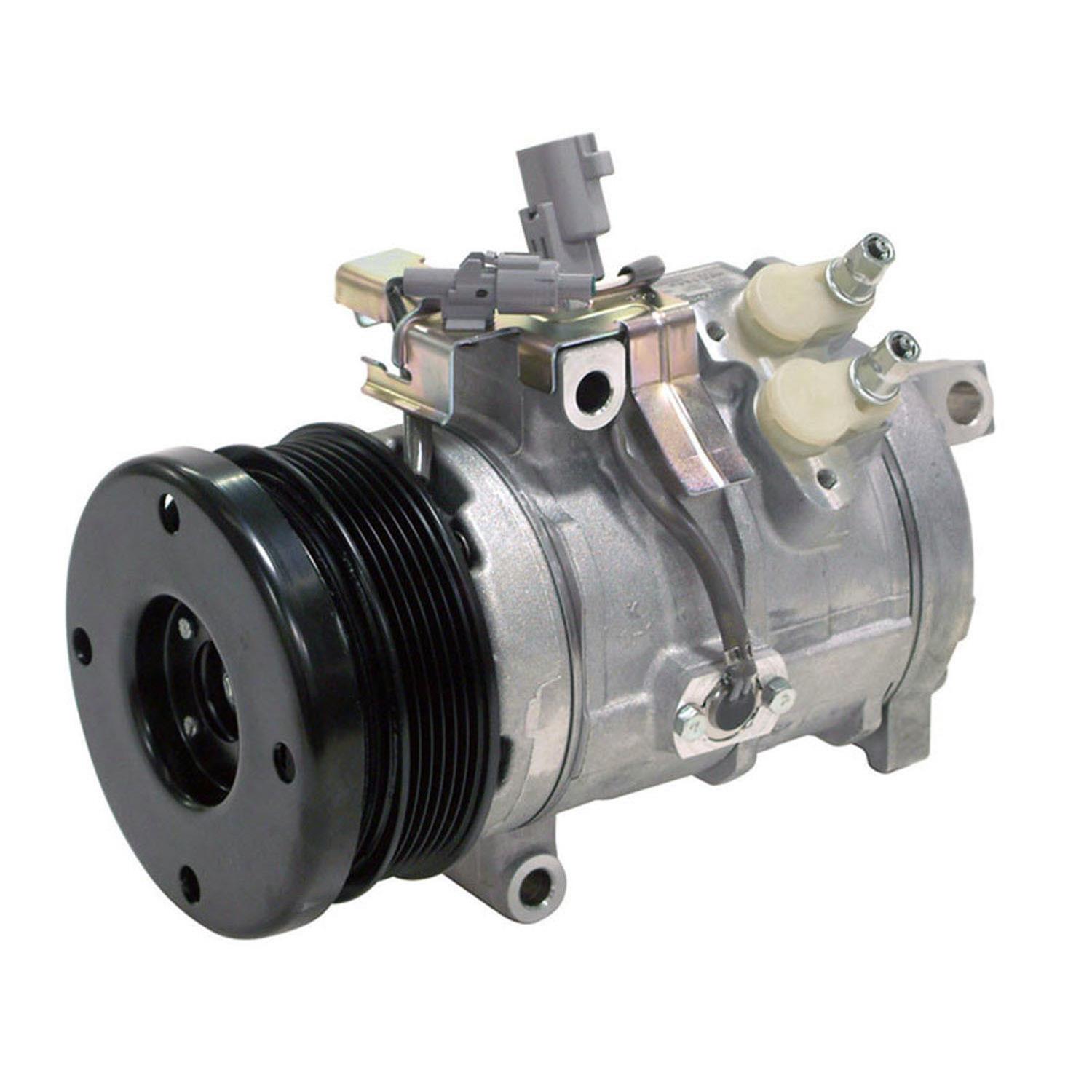

Toyota 10S20C A/C compressor

10S20C Air Conditioning Compressor 883100C061, 8831035881, 883106A161, 883200C070, 883200C07084, 883200C100, 883200C101, 883206A110, 883206A111 for Lexus GX470 Toyota SEQUOIA and Toyota Tundra

OE / Part number
883100C061, 8831035881, 883106A161, 883200C070, 883200C07084, 883200C100, 883200C101, 883206A110, 883206A111, 252411, 275631, 4471808880, 4471904510, 4710411, 8831048130, 883200C10184, 883200C110, 883200C11084…

This Compressor is a OE Equivalent Replacement for Air Conditioning Compressor 883100C061, 8831035881, 883106A161, 883200C070, 883200C07084, 883200C100, 883200C101, 883206A110, 883206A111 for Lexus GX470 Toyota SEQUOIA and Toyota Tundra

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Type10S20C
Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Type10S20C
Groove6PK
Coil Voltage12V
OE / Part number883100C061, 8831035881, 883106A161, 883200C070, 883200C07084, 883200C100, 883200C101, 883206A110, 883206A111, 252411, 275631, 4471808880, 4471904510, 4710411, 8831048130, 883200C10184, 883200C110, 883200C11084, 883206A100, 883206A10184, 883206A11184
ApplicationApplications: LEXUS

§ 04

Product details

10S20C Air Conditioning Compressor 883100C061, 8831035881, 883106A161, 883200C070, 883200C07084, 883200C100, 883200C101, 883206A110, 883206A111 for Lexus GX470 Toyota SEQUOIA and Toyota Tundra

Specifications

Refrigerant Type R134a
Installation Hardware Gaskets / O-rings
Oil Included Yes
Grade OEM Standard
Pulley Diameter 115mm
Core Material Aluminum
Clutch Included Yes
Compatible Refrigerant Oil Type PAG 46
Fluid Capacity 200 ML
Pulley Groove Quantity 6.0
Belt Type Serpentine
Type 10S20C

Applications:

LEXUS GX470 2003-2004
TOYOTA SEQUOIA 2001-2007
TOYOTA TUNDRA 2007-2009

Alternate/OEM Part Number(s): 252411, 275631, 4471808880, 4471904510, 4710411, 883100C061, 883200C070, 883200C100, 883200C101, 883100C061, 8831048130, 883106A161, 883200C070, 883200C07084, 883200C10184, 883200C110, 883200C11084, 883206A100, 883206A10184, 883206A110, 883206A111, 883206A11184
