Toyota A/C compressor

Type 10S20C 10S20C-6PK-12V OE Equivalent Air Conditioner Compressor 8823008051, 8832008030,8831008031 98310 471-1010​ for Toyota Sienna 3.3L 2004- 2007 6PK: · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

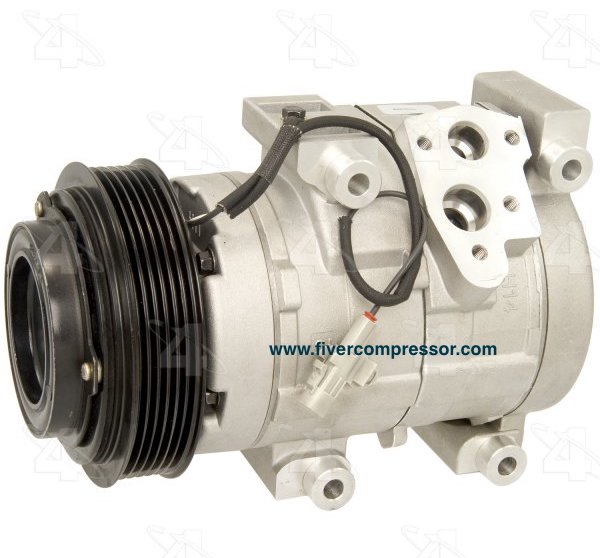

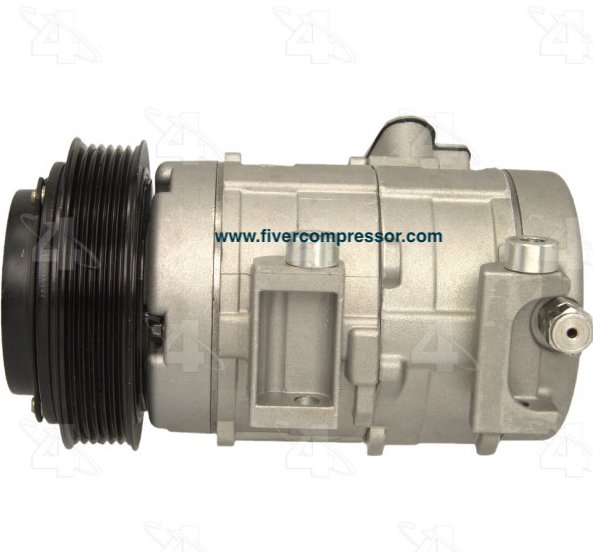

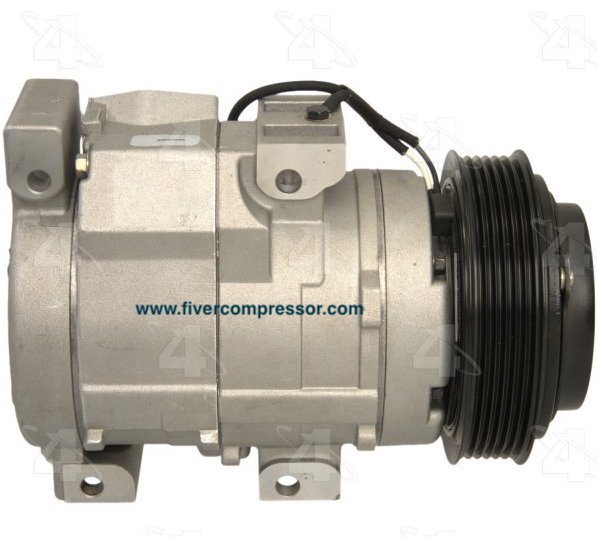

Toyota 10S20C A/C compressor

10S20C-6PK-12V OE Equivalent Air Conditioner Compressor 8823008051, 8832008030,8831008031 98310 471-1010​ for Toyota Sienna 3.3L 2004- 2007

OE / Part number
8823008051, 8832008030, 8831008031, 471-1010, 8832008031, 10345130, 10349581, 1010854

This is a OE equivalent replacement for Air Conditioner Compressor 8823008051, 8832008030,8831008031 for Toyota Sienna 3.3L 2004- 2007. 100% vacuum and leak tested for long life and proper performance

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Type10S20C
Groove6PK:

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Type10S20C
Groove6PK:
Coil Voltage12V
OE / Part number8823008051, 8832008030, 8831008031, 471-1010, 8832008031, 10345130, 10349581, 1010854
ApplicationApplications: TOYOTA. SIENNA 3.3L(ENGINE 3MZFE) V6 2004-2007

§ 04

Product details

10S20C-6PK-12V OE Equivalent Air Conditioner Compressor 8823008051, 8832008030,8831008031 98310 471-1010 for Toyota Sienna 3.3L 2004- 2007

98310 Specifications
Refrigerant TypeR-134A
Pulley Groove Quantity6
Clutch IncludedYes
Belt TypeSerpentine
Coil Clock PositionWire Lead
Compressor Type10s20c
Clutch Pulley Diameter4.6875
Coil Voltage12
Mounting TypeTangent Mount
Distance Between Mounting Holes2.328125
Oil TypePAG 46
O-Ring B Quantity1
TypeNippondenso
O-Ring A Quantity1
DescriptionCompressors - New
O-Ring A Number/Desc[24681] / Green O-Ring
Ctch Dia. MM Prmy119.050
Mount Distance MM59.182
Printed Foot NoteMay Require use of OE Manifold
StylePiston
Discharge Port TypeO-Ring
Suction Port TypeO-Ring
New or RemanNew
O-Ring B Number/Desc[24661] / Green O-Ring

Applications:

TOYOTA. SIENNA 3.3L(ENGINE3MZFE) V6 2004-2007

Alternate/OEM Part Number(s): 8823008051, 8832008030, 8832008031,10345130,10349581,1010854, 98310 471-1010
