FIVER FIVER AUTOPARTS CO.,LTD — Chongqing

FIVER AUTOPARTS CO.,LTD

Toyota A/C compressor

Type 10S20C 10S20C 157325 ac compressor 8PK for Toyota Tundra 883200C160 883100C090 447190-5934 883200C130 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

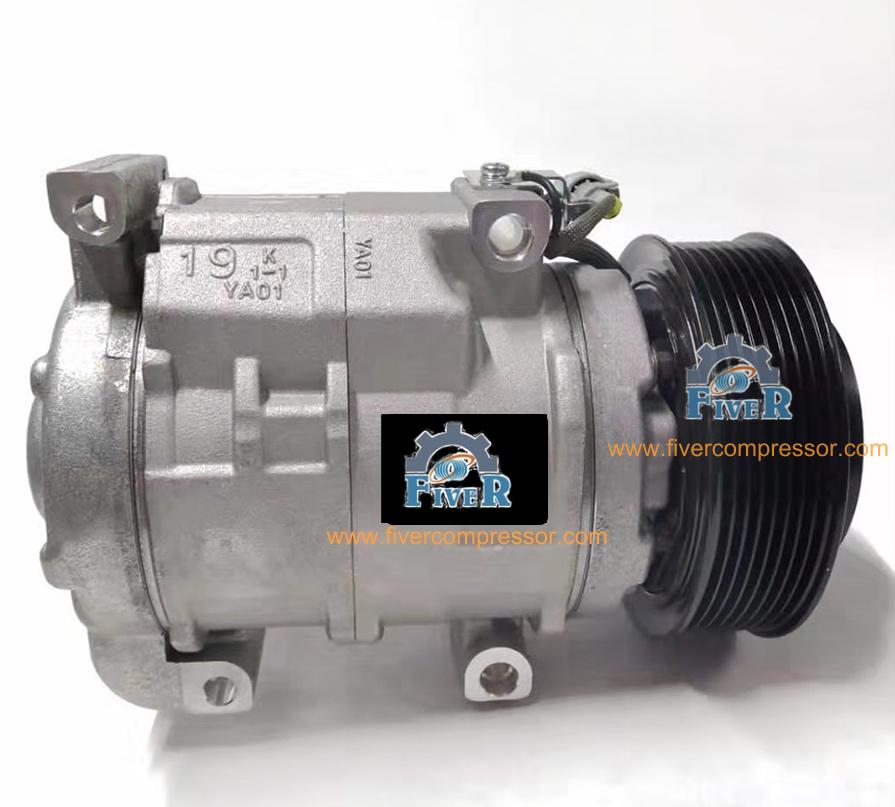

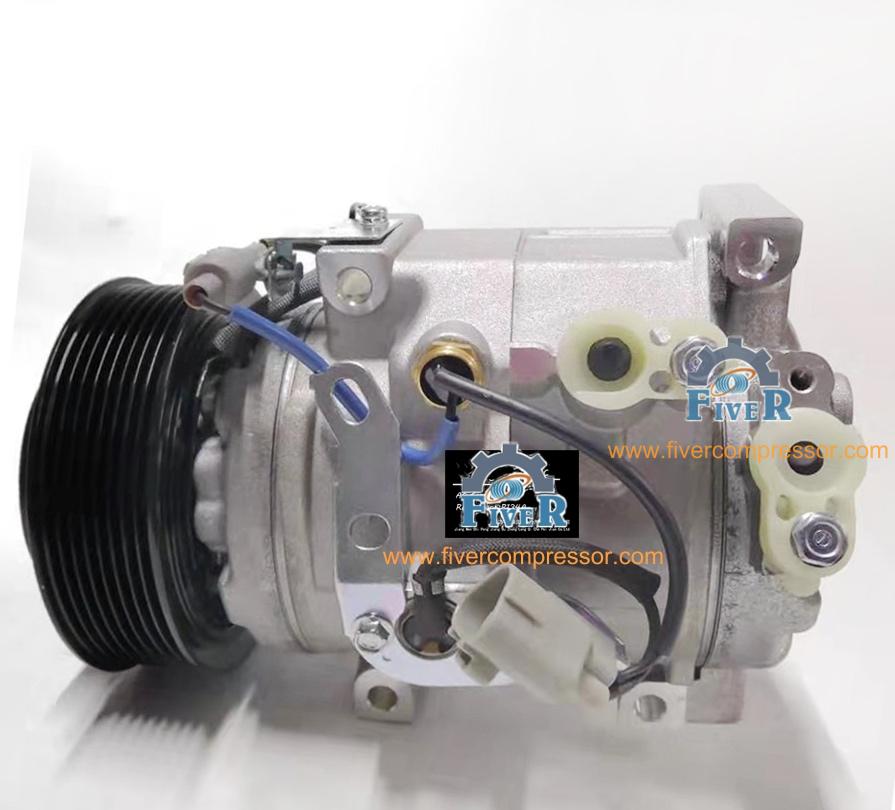

Toyota 10S20C A/C compressor

10S20C 157325 ac compressor 8PK for Toyota Tundra 883200C160 883100C090 447190-5934 883200C130

This Compressor is a OE Equivalent Replacement for Toyota Tundra 4.6L/5.7L 2010-2014

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10S20C
Grooves8pk

Clutch and fitment

Voltage12V
modelDenso OE 447190-5934

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10S20C
Grooves8pk
Voltage12V
modelDenso OE 447190-5934
ApplicationModel: Denso OE 447190-5934

§ 04

Product details

10S20C 157325 ac compressor 8PK for Toyota Tundra 883200C160 883100C090 447190-5934 883200C130




Specifications:
Compressor Type: 10S20C
Grooves: 8pk
Voltage: 12V
Applicant:
For Toyota Tundra 4.6L 2010-2014
For Toyota Tundra 5.7L 2010-2014


OE number:
883100C090;447190-5934; 88320-0C160; 883200C160; 883200C130; 88320-0C130
