Toyota A/C compressor

Type 10S17C 10S17C AC Compressor 883200C120 for TOYOTA 4RUNNER 883206A410, 883206A540 Auto A/C Compressor 8831035A50 for TOYOTA FJ CRUISER and TOYOTA…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

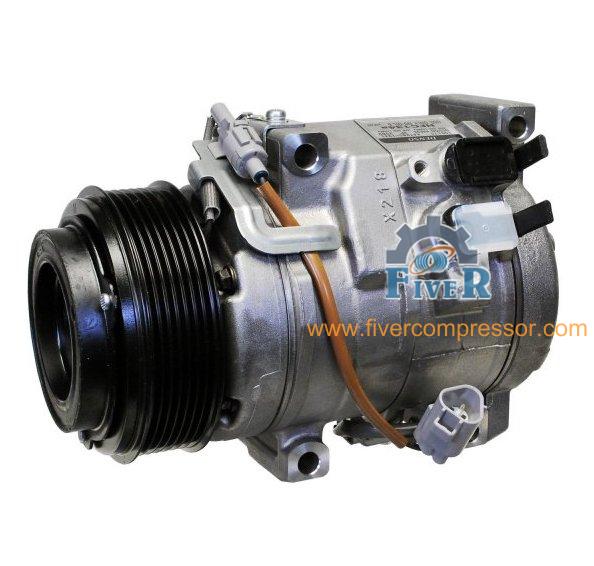

Toyota 10S17C A/C compressor

10S17C AC Compressor 883200C120 for TOYOTA 4RUNNER 883206A410, 883206A540 Auto A/C Compressor 8831035A50 for TOYOTA FJ CRUISER and TOYOTA TUNDRA

OE / Part number
4471602971, 8831035A50, 883206A540

10S17C AC Compressor 883200C120 for TOYOTA 4RUNNER 883206A410, 883206A540 Auto A/C Compressor for TOYOTA FJ CRUISER and TOYOTA TUNDRA

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Refrigerant TypeR134a
Clutch Diameter100MM

Clutch and fitment

Pulley Belt TypeSerpentine
Type10S17C

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Refrigerant TypeR134a
Clutch Diameter100MM
Pulley Belt TypeSerpentine
Type10S17C
OE / Part number4471602971, 8831035A50, 883206A540
ApplicationApplications: TOYOTA

§ 04

Product details

10S17C AC Compressor 883200C120 for TOYOTA 4RUNNER 883206A410, 883206A540,8831035A50Auto A/C Compressor for TOYOTA FJ CRUISER and TOYOTA TUNDRA



Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter100.0 mm
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine
Mounting TypeBolt Tangent


Applications:

TOYOTA4RUNNER2010-2020
TOYOTAFJ CRUISER2010-2014
TOYOTATUNDRA2007-2014

Alternate/OEM Part Number(s): 4471602971, 8831035A50, 883206A540

883200C120, 883206A410
