Toyota A/C compressor

Type 10S17C 10S17C-7PK-12V AC Air Conditioner Compressor 8831006090, 8831033220, 8831048040, 8831048060, 8831048140, 8832006080, 8832017110… 7PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

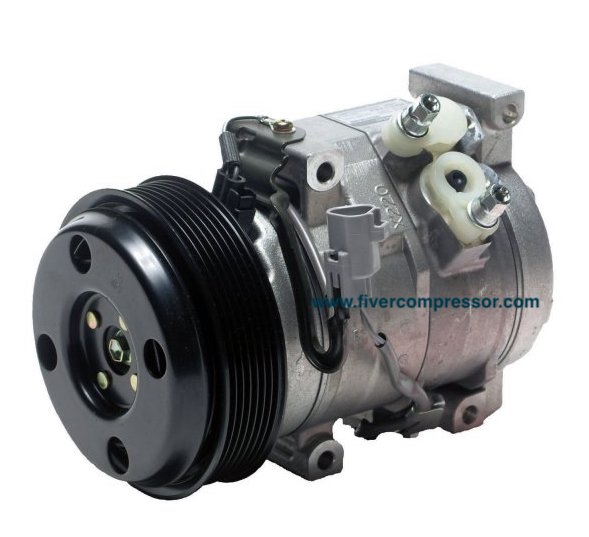

Toyota 10S17C A/C compressor

10S17C-7PK-12V AC Air Conditioner Compressor 8831006090, 8831033220, 8831048040, 8831048060, 8831048140, 8832006080, 8832017110, 8832048080 for Toyota Highlander Toyota Camry and Toyota So

OE / Part number
254486, 274522, 4471708140, 4471708141, 4471709530, 4471709790, 4471808151, 4471902611, 4472204063, 4710371, 4710378, 4710425, 4711425, 8831006090, 8831033220, 8831047030, 8831048040, 8831048060, 8831048140…

This Compressor is a aftermarket replacement for Air Conditioner Compressor 8831006090, 8831033220, , 8831048040, 8831048060, 8831048140, 8832006080, 8832017110, 8832048080 for Toyota Highlander Toyota Camry and Toyota Solara

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Type10S17C
Groove7PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Type10S17C
Groove7PK
Coil Voltage12V
OE / Part number254486, 274522, 4471708140, 4471708141, 4471709530, 4471709790, 4471808151, 4471902611, 4472204063, 4710371, 4710378, 4710425, 4711425, 8831006090, 8831033220, 8831047030, 8831048040, 8831048060, 8831048140, 8832006080, 8832017110, 8832048080
ApplicationApplications: TOYOTA

§ 04

Product details

10S17C-7PK-12V AC Air Conditioner Compressor 8831006090, 8831033220, 8831048040, 8831048060, 8831048140, 8832006080, 8832017110, 8832048080 for Toyota Highlander Toyota Camry and Toyota Solara

Specifications

Refrigerant TypeR134a
Clutch Maximum Diameter130.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine
Mounting TypeBolt Tangent

Applications:

TOYOTACAMRY2002-2006
TOYOTAHIGHLANDER2001-2007
TOYOTASOLARA2002-2008

Alternate/OEM Part Number(s): 254486, 274522, 4471708140, 4471708141, 4471709530, 4471709790, 4471808151, 4471902611, 4472204063, 4710371, 4710378, 4710425, 4711425, 8831006090, 8831033220,8831048040, 8831048060, 8831048140, 8832006080, 8832017110, 8832048080
