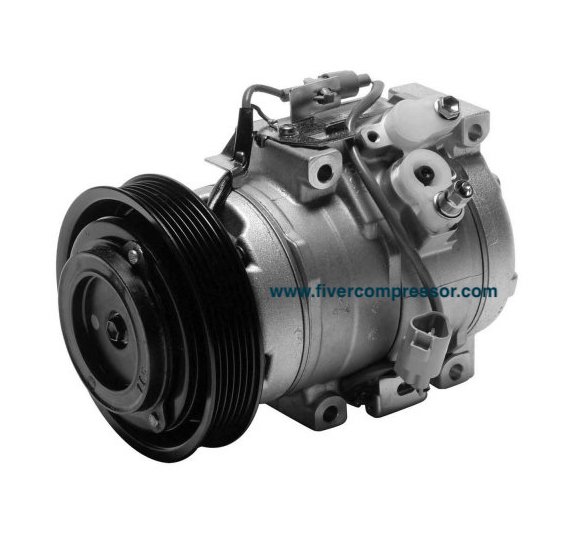

AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
6PK · 12V
This Compressor is a OE Equivalent Replacement for Air Conditioning Compressor 8831007020, 8831007021, 8831033160, 8831033170, 8831033210, 8831048011, 8832007040, 8832007090, 8832033160 for Lexus ES300/ES330 for Toyota Avalon Toyota Camry and Toyota Solara
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04
10S17C - 6 PK- 12V Air Conditioning Compressor 8831007020, 8831007021, 8831033160, 8831033170, 8831033210, 8831048011, 8832007040, 8832007090, 8832033160 for Lexus ES300 2002-2004; Lexus ES330 2004-2006 for Toyota Avalon 2000-2004 Toyota Camry 2002-2006 and Toyota Solara 2004-2008

| Specifications | |
|---|---|
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 130.0 MM |
| Compressor Mount Hole Quantity | 4 |
| Pulley Belt Type | Serpentine 6PK |
| Mounting Type | Bolt Tangent |
Applications:
| LEXUS | ES300 | 2002-2003 |
| LEXUS | ES330 | 2004-2006 |
| TOYOTA | AVALON | 2000-2004 |
| TOYOTA | CAMRY | 2002-2006 |
| TOYOTA | SOLARA | 2004-2008 |
Alternate/OEM Part Number(s): 254488, 274521, 4471705612, 4471705851, 4471709541, 4471709761, 4471902600, 4472203199, 4472204294, 4472204342, 4710342, 4710367, 4710409, 4711367, 8831007020, 8831007021, 8831033160, 8831033170, 8831033210, 8831048011, 8832007040, 8832007090, 8832033160
§ 05
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
