Toyota A/C compressor

Type 10S17C 10S17C-6PK-12V Air Conditioner Compressor 4711327 275538, 4471705156, 4710327, 883100C011, 883200C010 for Toyota Tundra V6/V8 2000-2006 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

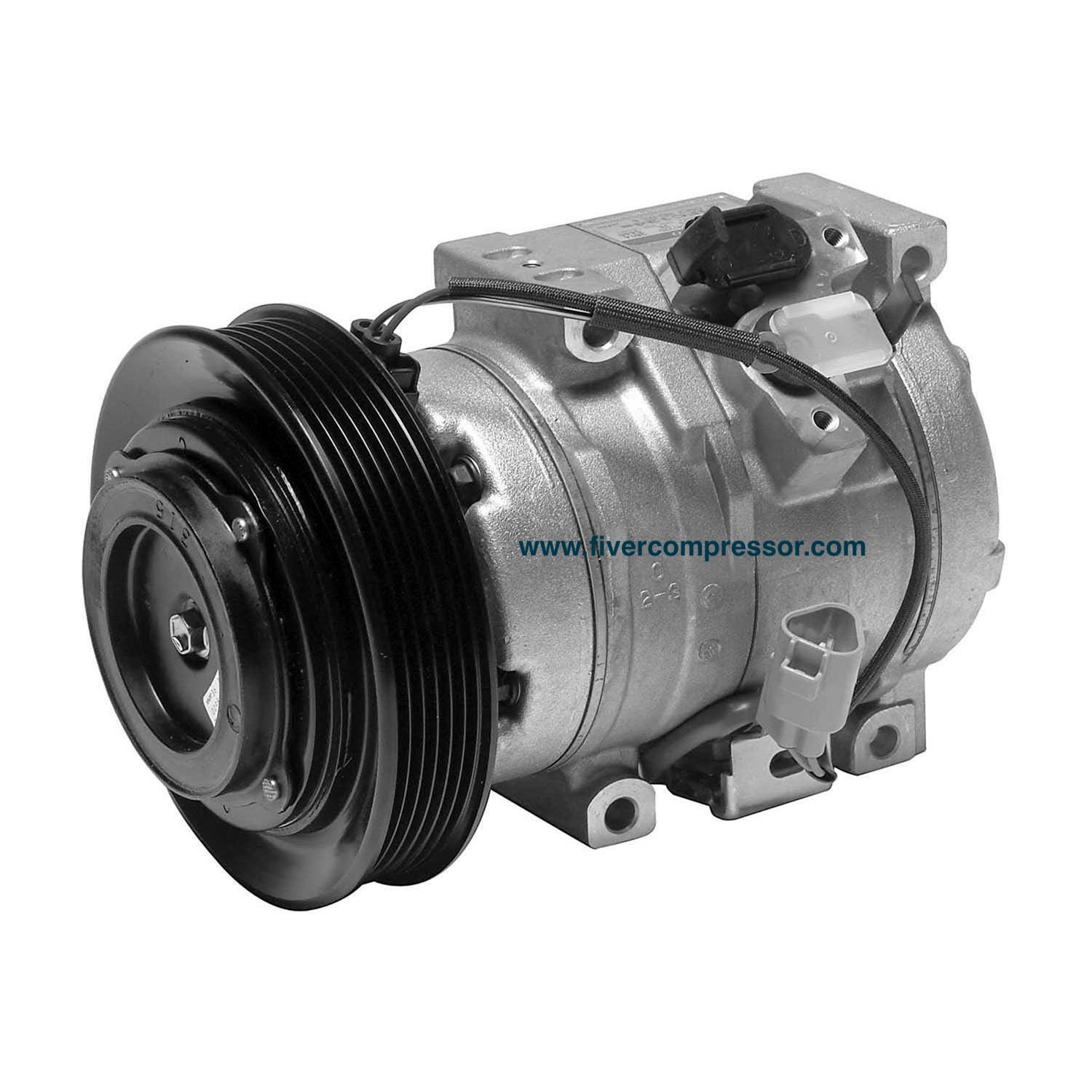

Toyota 10S17C A/C compressor

10S17C-6PK-12V Air Conditioner Compressor 4711327 275538, 4471705156, 4710327, 883100C011, 883200C010 for Toyota Tundra V6/V8 2000-2006

OE / Part number
254515, 275538, 4471705156, 4710327, 883100C011, 883200C010, 4711327

Manufactured and tested to the strictest OE standards for unparalleled performance,Thrust bearings structured to withstand tension and stress for maximum durability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Type10S17C
Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Type10S17C
Groove6PK
Coil Voltage12V
OE / Part number254515, 275538, 4471705156, 4710327, 883100C011, 883200C010, 4711327
ApplicationApplications: Make Model Engine Year

§ 04

Product details

10S17C-6PK-12V Air Conditioner Compressor 4711327 275538, 4471705156, 4710327, 883100C011, 883200C010 for Toyota Tundra V6/V8 2000-2006


 Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter120.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 6PK
Mounting TypeBolt Tangent

Applications:

Make Model Engine Year

Toyota Tundra V6 3.4L 2000-2004

Toyota Tundra V6 4.0L 2005-2006

Toyota Tundra V8 4.7L 2005-2006

Toyota Tundra LIMITED V8 4.7L 2000-2006

Toyota Tundra SR5 V6 3.4L 2000-2004

Toyota Tundra SR5 V8 4.7L 2000-2006

Toyota Tundra SR5 V64.0L 2005-2006


Alternate/OEM Part Number(s): 254515, 275538, 4471705156, 4710327, 883100C011, 883200C010
