Toyota A/C compressor

Type 10S17C 10S17C 4 Grooves Compressor Assy, Cooler 88320-6A170, 883206A170 for Toyota HILUX SURF/ 4RUNNER TRN210/TRN215 2.7L 2004-2009 for Toyota… 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

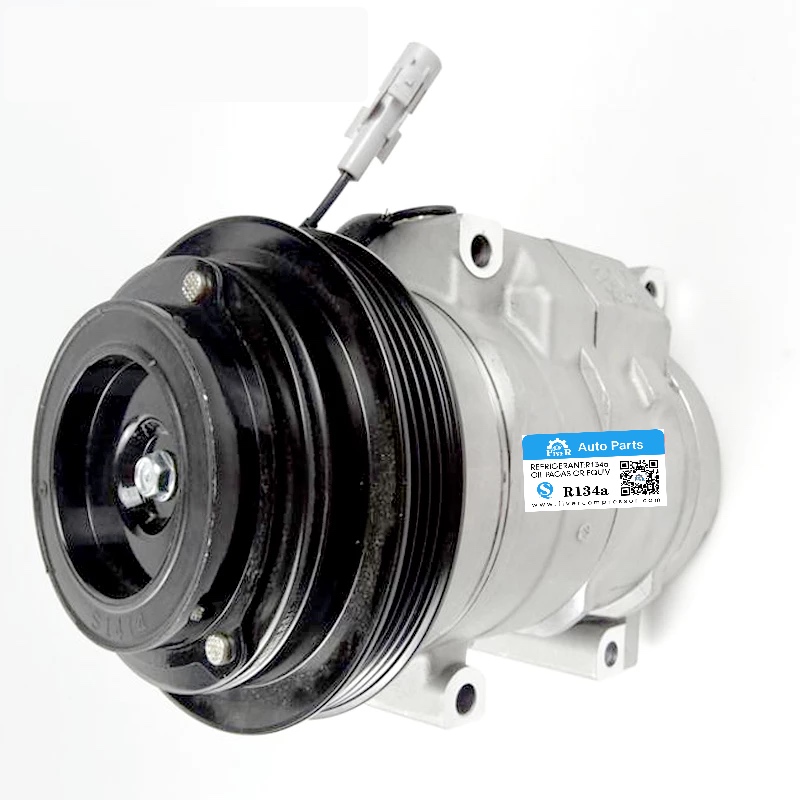

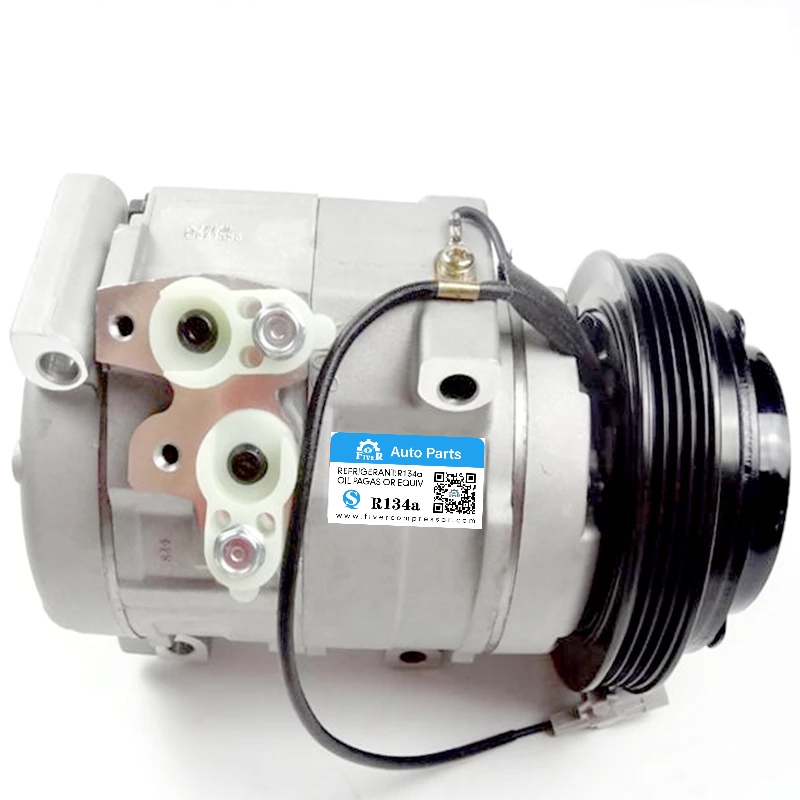

Toyota 10S17C A/C compressor

10S17C 4 Grooves Compressor Assy, Cooler 88320-6A170, 883206A170 for Toyota HILUX SURF/ 4RUNNER TRN210/TRN215 2.7L 2004-2009 for Toyota LAND CRUISER PRADO 2700 TRJ120/TRJ125 2004-2009

OE / Part number
88320-6A170, 883206A170

This Compressor is a a replacement for Compressor Assy, Cooler 88320-6A170, 883206A170 for Toyota HILUX SURF/ 4RUNNER TRN210/TRN215 2.7L 2004-2009 for Toyota LAND CRUISER PRADO 2700 TRJ120/TRJ125 2004-2009

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10S17C
Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10S17C
Groove4PK
Coil Voltage12V
OE / Part number88320-6A170, 883206A170
ApplicationApplications: TOYOTA

§ 04

Product details

10S17C 4 Grooves Compressor Assy, Cooler 88320-6A170, 883206A170 for Toyota HILUX SURF/ 4RUNNER TRN210/TRN215 2.7L 2004-2009 for Toyota LAND CRUISER PRADO 2700 TRJ120/TRJ125 2004-2009

Specifications:

Clutch Model :10S17CAC Compressor

Pulley Grooves: 4 Grooves

Voltage:12V

Pulley Diameter: 135mm


Applications:

TOYOTA

HILUX SURF/ 4RUNNER


TRN210W-GKPXK | FrameTRN210gradeSSRX | ENGINE2TRFE 2.7L | ModelHILUX SURF | 08.2004To08.2009 | ATM | 4FC | 5 Doors |

TRN215W-GKPGK | FrameTRN215gradeSSRG | ENGINE2TRFE 2.7L |ModelHILUX SURF | 08.2004To08.2009 | ATM | 4FC | 5 Doors |

TRN215W-GKPXK | FrameTRN215gradeSSRX |ENGINE2TRFE 2.7L |ModelHILUX SURF | 08.2004To08.2009 | ATM | 4FC | 5 Doors |

LAND CRUISER PRADO


TRJ120W-GGPEK | TRJ120W-GKPEK | FrameTRJ120gradeTX | ENGINE2TRFE | LAND CRUISER PRADO 120 |08.2004To08.2009 | ATM | 4FC |

TRJ120L-GKMEK | TRJ120L-GKPEK | TRJ120R-GKMEK | FrameTRJ120gradeGX |ENGINE2TRFE | LAND CRUISER PRADO 120 |08.2004To08.2009 | ATM | 4FC |

TRJ125W-GJPEK | FrameTRJ125gradeRX | ENGINE2TRFE | ModelLAND CRUISER PRADO 120 | 08.2004To08.2009 | ATM | 4FC | 5 SEATS | 3 Doors |

TRJ125L-GJMEK | FrameTRJ125gradeGX |ENGINE2TRFE | ModelLAND CRUISER PRADO 120 | 08.2004To08.2009 | MTM | 5F | 3 Doors |

Alternated OE:

88320-6A160, 88320-6A170, 88410-2F010, 883206A160 883206A170, 884102F010,88320 6A160, 883206A170, 88410 2F010, 447220-5190, 88320-35710,8832035710
