Toyota A/C compressor

Type 10S15L 10S15L-6PK-12V AC Compressor Assy 4711329, 275698, 4471706600, 4710329, 883102B680, 883202B420,88410-32200 for Toyota Celica GT/GTS 1.8L… 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

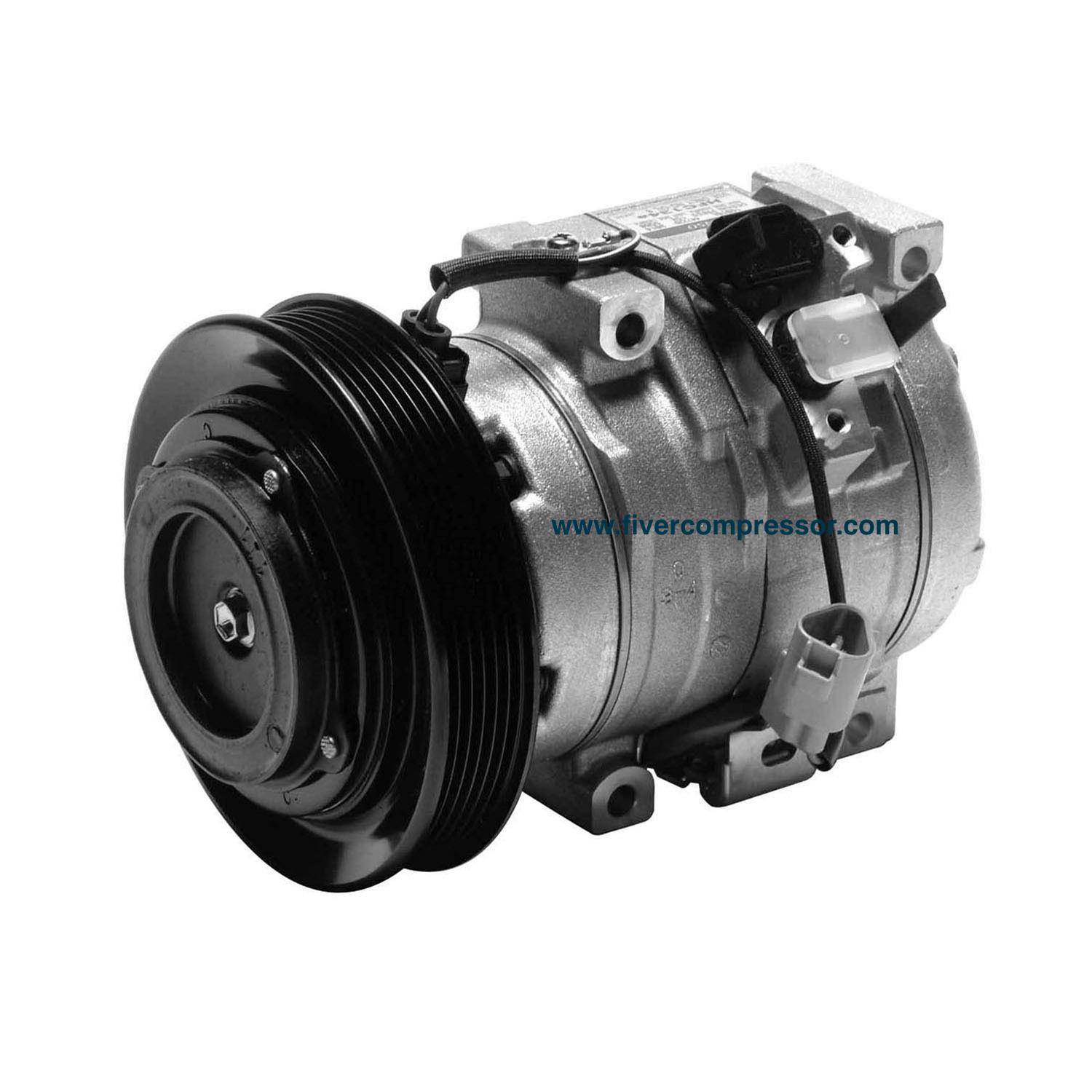

Toyota 10S15L A/C compressor

10S15L-6PK-12V AC Compressor Assy 4711329, 275698, 4471706600, 4710329, 883102B680, 883202B420,88410-32200 for Toyota Celica GT/GTS 1.8L 2000-2005

OE / Part number
4711329, 275698, 4471706600, 4710329, 883102B680, 883202B420, 88410-32200, 252410

This Compressor is a OE Equivalent Replacement for Compressor Assy 4711329, 275698, 4471706600, 4710329, 883102B680, 883202B420,88410-32200 for Toyota Celica GT/GTS 1.8L 2000-2005

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Type10S15L
Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Type10S15L
Groove6PK
Coil Voltage12V
OE / Part number4711329, 275698, 4471706600, 4710329, 883102B680, 883202B420, 88410-32200, 252410
ApplicationApplications: Make Model Engine Year

§ 04

Product details

10S15L-6PK-12V AC Compressor Assy 4711329, 275698, 4471706600, 4710329, 883102B680, 883202B420,88410-32200 for Toyota Celica GT/GTS 1.8L 2000-2005

 Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter140.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 6PK
Mounting TypeBolt Tangent
Applications:

Make Model Engine Year

Toyota Celica GTS L4 1.8L 2000-2005

Toyota Celica GT L4 1.8L 2000-2005


Alternate/OEM Part Number(s): 252410, 275698, 4471706600, 4710329, 4711329 883102B680, 883202B420,88410-32200.
