Toyota A/C compressor

Type 10S15C 10S15C-7PK-12V OE Quality AC Compressor Assy 4471808252, 883100C050, 883100C050F, 883200C090, 88310-44150, 88320-44120 for Toyota Tundra… 7PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

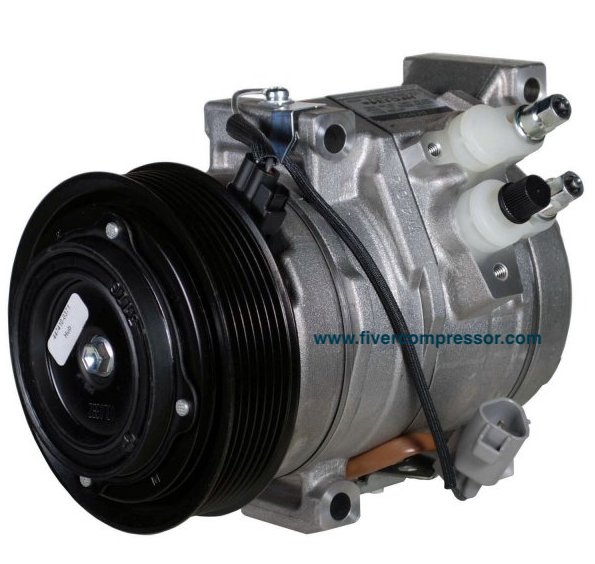

Toyota 10S15C A/C compressor

10S15C-7PK-12V OE Quality AC Compressor Assy 4471808252, 883100C050, 883100C050F, 883200C090, 88310-44150, 88320-44120 for Toyota Tundra 4.0L V6 2005-2006

OE / Part number
4471808252, 883100C050, 883100C050F, 883200C090, 88310-44150, 88320-44120

This Compressor is a replacement for AC Compressor Assy 4471808252, 883100C050, 883100C050F, 883200C090, 88310-44150, 88320-44120 for Toyota Tundra 4.0L V6 2005-2006, with one year warranty.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10S15C
Groove7PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10S15C
Groove7PK
Coil Voltage12V
OE / Part number4471808252, 883100C050, 883100C050F, 883200C090, 88310-44150, 88320-44120
ApplicationApplications: Toyota Tundra 2005-2006 Engine: SR5 4.0 V6 Gas Naturally A FI 1GRFE - 3956 -

§ 04

Product details

10S15C-7PK-12V OE Quality AC Compressor Assy 4471808252, 883100C050, 883100C050F, 883200C090, 88310-44150, 88320-44120 for Toyota Tundra 4.0L V6 2005-2006

Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter120.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 7PK
Mounting TypeBolt Tangent
Applications:

Toyota Tundra 2005-2006 Engine:SR5 4.0 V6 Gas Naturally A FI 1GRFE - 3956 -

Alternate/OEM Part Number(s):

DENSO 447170-9440, DENSO 4471709440, Denso 447180-8252, Denso 4471808252, Denso 447260-8011, Denso 4472608011, DENSO 471-1012, Denso 4711012, Denso W201, Denso W404, TOYOTA 88310-44150, TOYOTA 8831044150, Toyota 88320-0C090, Toyota 88320-0C090-84, TOYOTA 88320-44120, Toyota 883200C090, Toyota 883200C09084, TOYOTA 8832044120
