Toyota A/C compressor

Type 10PA17C 10PA17C 4PK 12V A/C Conditioner Compressor 4711163, 8831028270, 8832028210, 8832060580 for Toyota Previa LE L4 2.4L 1994-1997 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

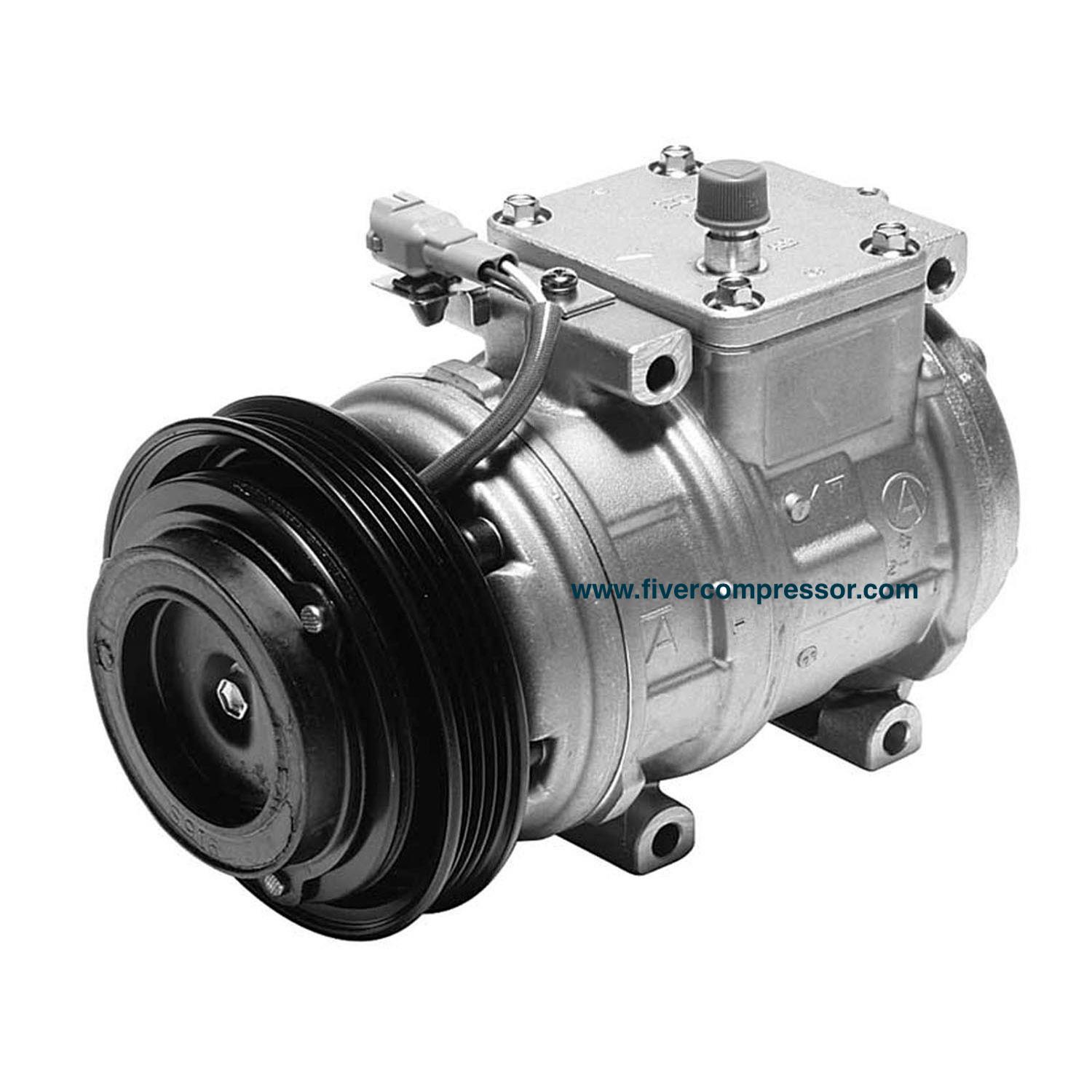

Toyota 10PA17C A/C compressor

10PA17C 4PK 12V A/C Conditioner Compressor 4711163, 8831028270, 8832028210, 8832060580 for Toyota Previa LE L4 2.4L 1994-1997

OE / Part number
4711163, 8831028270, 8832028210, 8832060580, 88310-28270, 88320-28210, 88320-60580, 254160, 254401, 274160, 275684, 4471003551, 4710163

This compressor is a OE quality replacement for A/C Conditioner Compressor 4711163, 8831028270, 8832028210, 8832060580 for Toyota Previa LE L4 2.4L 1994-1997, each compressor is tested before leaving the factory.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10PA17C
Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10PA17C
Groove4PK
Coil Voltage12V
OE / Part number4711163, 8831028270, 8832028210, 8832060580, 88310-28270, 88320-28210, 88320-60580, 254160, 254401, 274160, 275684, 4471003551, 4710163
ApplicationApplications: Alternate/OEM Part Number(s) : 254160, 254401, 274160, 275684, 4471003551, 4710163, 8831028270, 8832028210, 8832060580

§ 04

Product details

10PA17C 4PK 12V A/C Conditioner Compressor 4711163, 8831028270, 8832028210, 8832060580 for Toyota Previa LE L4 2.4L 1994-1997

Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter125.0 MM
Compressor Mount Hole Quantity4
Pulley Belt TypeSerpentine 4PK
Mounting TypeBolt Tangent

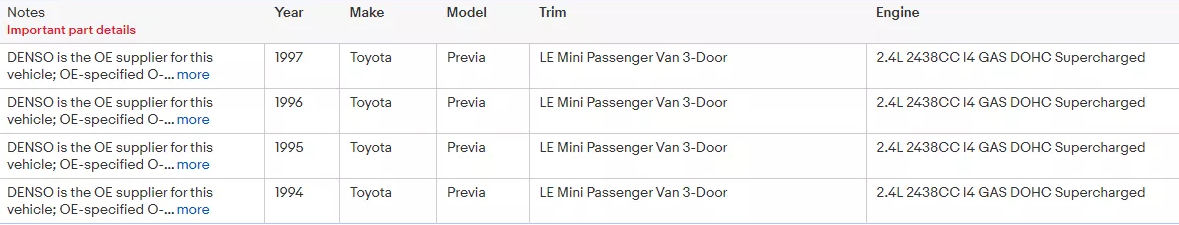

Applications:

Alternate/OEM Part Number(s): 254160, 254401, 274160, 275684, 4471003551, 4710163, 8831028270, 8832028210, 8832060580
