Toyota A/C compressor

Type 10P30C 10P30C 157MM PV2 24V Toyota Coaster Bus1993-2016 A/C Compressor 88320-36530,8832036530,447220-0394,447220-0390 A2 · 24V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

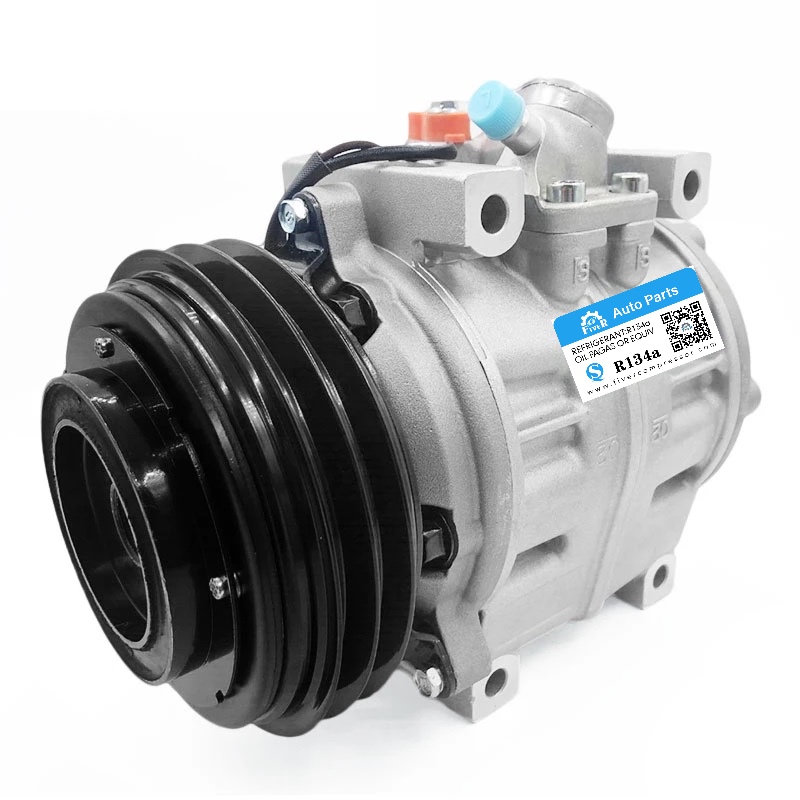

Toyota 10P30C A/C compressor

10P30C 157MM PV2 24V Toyota Coaster Bus1993-2016 A/C Compressor 88320-36530,8832036530,447220-0394,447220-0390

OE / Part number
88320-36530, 8832036530, 447220-0394, 447220-0390

This Compressor is made according to the OE quality standard and it is a perfect replacement for Toyota Coaster Bus1993-2016 A/C Compressor 88320-36530,8832036530,447220-0394,447220-0390

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10P30C
GrooveA2

Clutch and fitment

Coil Voltage24V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10P30C
GrooveA2
Coil Voltage24V
OE / Part number88320-36530, 8832036530, 447220-0394, 447220-0390
ApplicationApplications: TOYOTA

§ 04

Product details

10P30C 157MM PV2 24V Toyota Coaster Bus1993-2016 A/C Compressor 88320-36530,8832036530,447220-0394,447220-0390

PARAMETERS :

Grooves: 2pk

Diameter:157 MM

Compressor type:Denso 10P30C COMPRESSOR
Voltage :12V or 24V

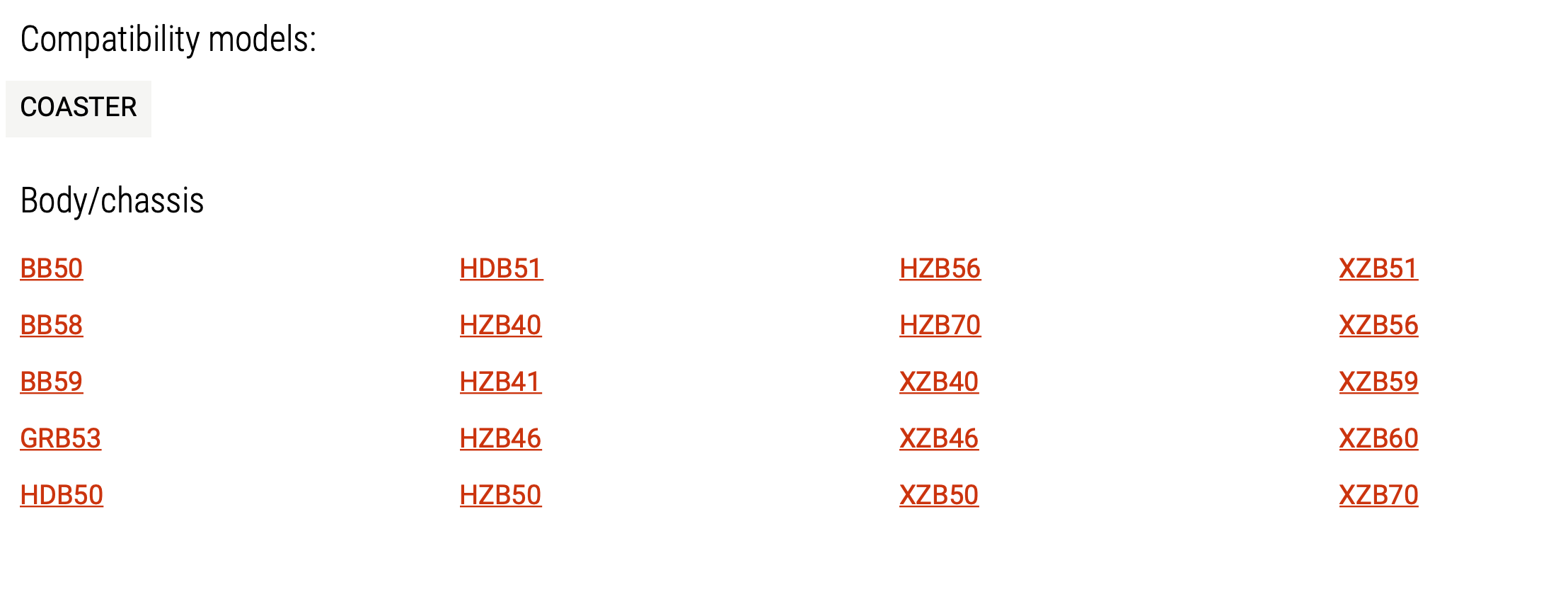

Applications:

TOYOTA

COASTER

OEM NUMBER :

447220-0394

447220-1030

447220-1310

447220-0390

88320-36530
