Toyota A/C compressor

Type 10P13C 10P13C 5PK 12V Air Cooler Assy Compressor 4710161,8831042010, 8832042010,88310-42010, 88320-42010 for Toyota RAV4/VANGUARD… 5PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

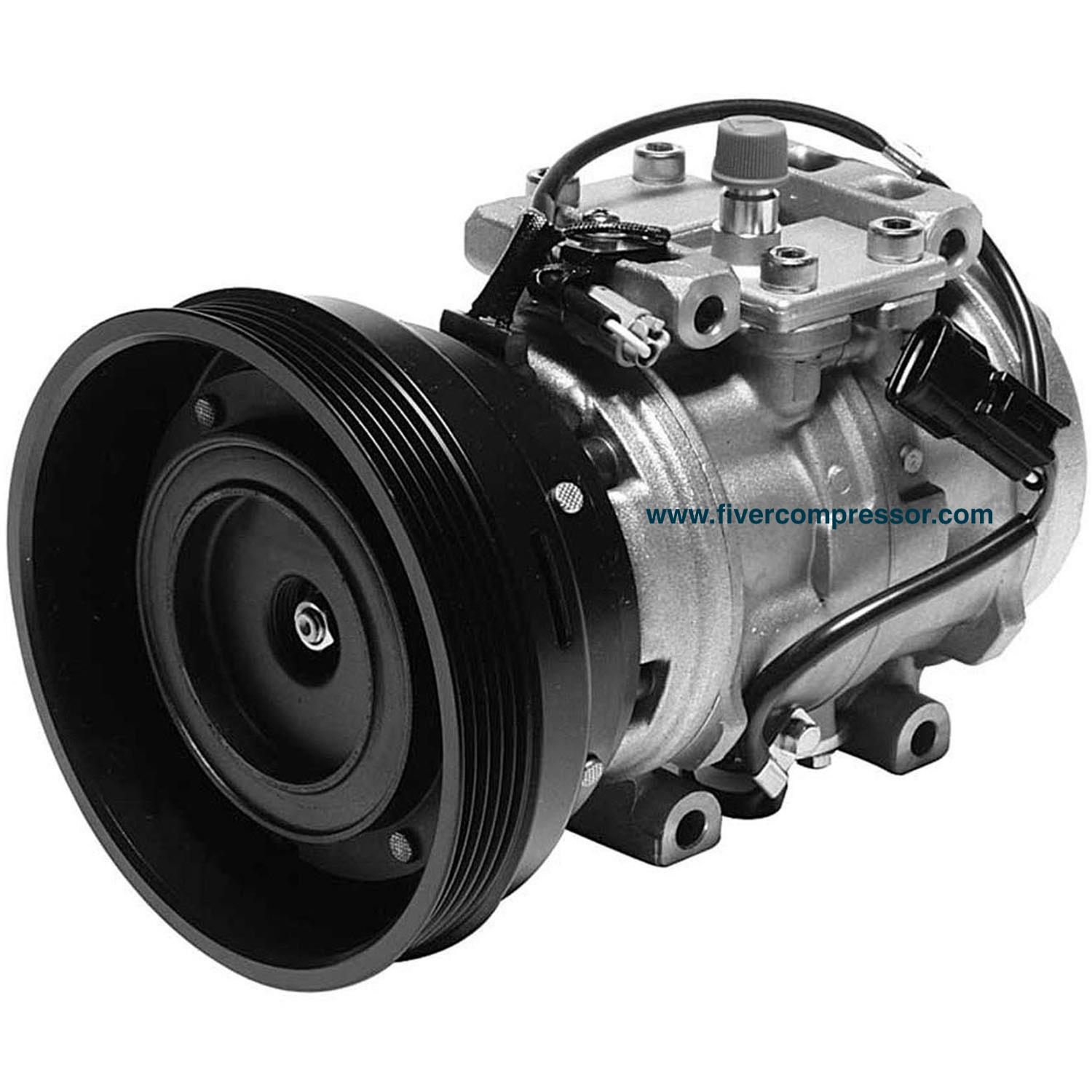

Toyota 10P13C A/C compressor

10P13C 5PK 12V Air Cooler Assy Compressor 4710161,8831042010, 8832042010,88310-42010, 88320-42010 for Toyota RAV4/VANGUARD SXA10/SXA11/SXA15/SXA16 L4 2.0L1994-2000

OE / Part number
4710161, 8831042010, 8832042010, 88310-42010, 88320-42010, 254190, 254376, 4471005841, 4472008134

This compressor is an OE equivalent replacement for Compressor 4710161,8831042010, 8832042010,88310-42010, 88320-42010 for Toyota RAV4/VANGUARD SXA10/SXA11/SXA15/SXA16 1994-2000

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10P13C
Groove5PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10P13C
Groove5PK
Coil Voltage12V
OE / Part number4710161, 8831042010, 8832042010, 88310-42010, 88320-42010, 254190, 254376, 4471005841, 4472008134
ApplicationApplications: Make Model Engine Year

§ 04

Product details

10P13C 5PK 12V Air Cooler Assy Compressor 4710161,8831042010, 8832042010,88310-42010, 88320-42010 for Toyota RAV4/VANGUARD SXA10/SXA11/SXA15/SXA16 L4 2.0L1994-2000

Specifications
Refrigerant TypeR134a
Clutch Maximum Diameter150.0 MM
Compressor Mount Hole Quantity3
Pulley Belt TypeSerpentine 5PK
Mounting TypeBolt Tangent
Applications:

Make Model Engine Year

TOYOTA RAV4/VANGUARD SXA10 ENGINE3SFE L4 2.0L 1994-2000

TOYOTA RAV4/VANGUARD SXA11 ENGINE3SFE L4 2.0L 1994-2000

TOYOTA RAV4/VANGUARD SXA15 ENGINE3SFE L4 2.0L 1996-2000

TOYOTA RAV4/VANGUARD SXA16 ENGINE3SFE L4 2.0L 1994-2000

Alternate/OEM Part Number(s): 254190, 254376, 4471005841, 4472008134,4710161, 8831042010, 8832042010,88310-42010, 88320-42010.
