Toyota A/C compressor

Type 10P13A 10P13A A/C Compressor 88320-16030,88320-16031 for Toyota TERCEL Frame AL21/AL25 Engine 3AC 1982-1988 and Ford Festiva 1990-1993 A1 · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

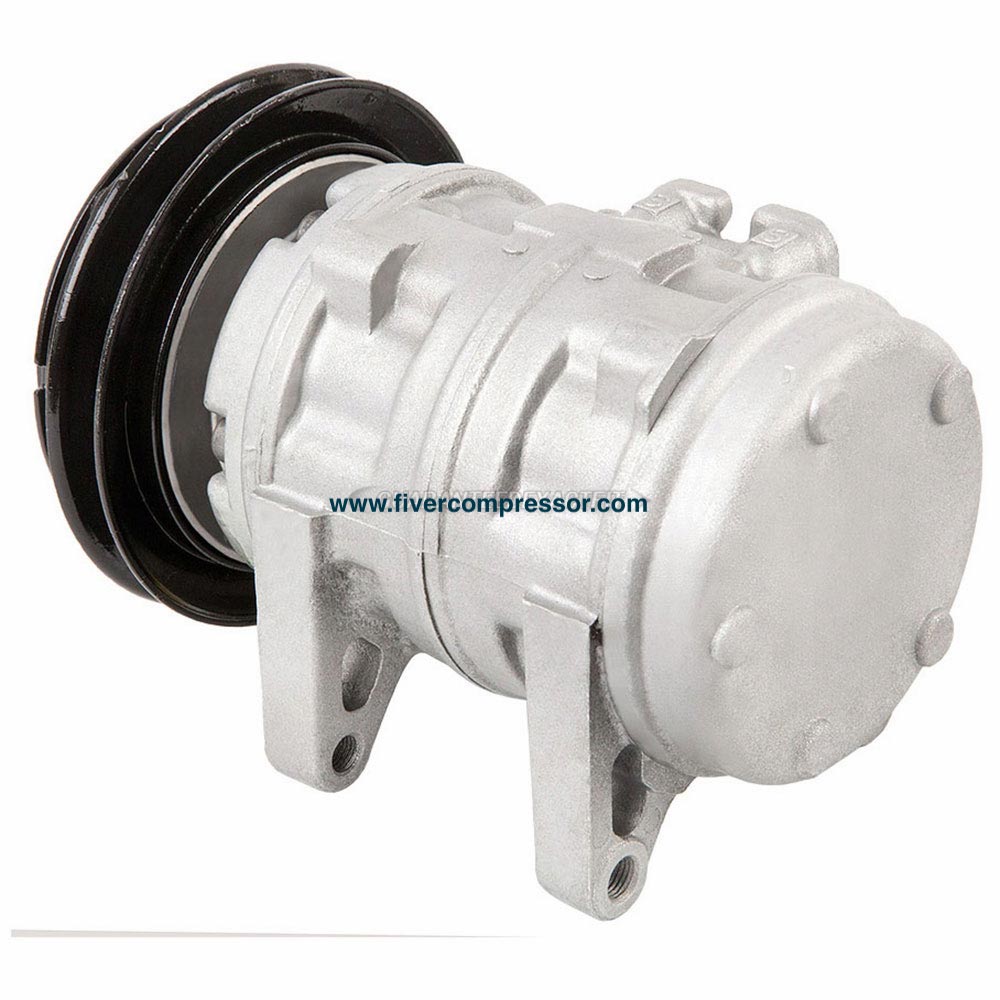

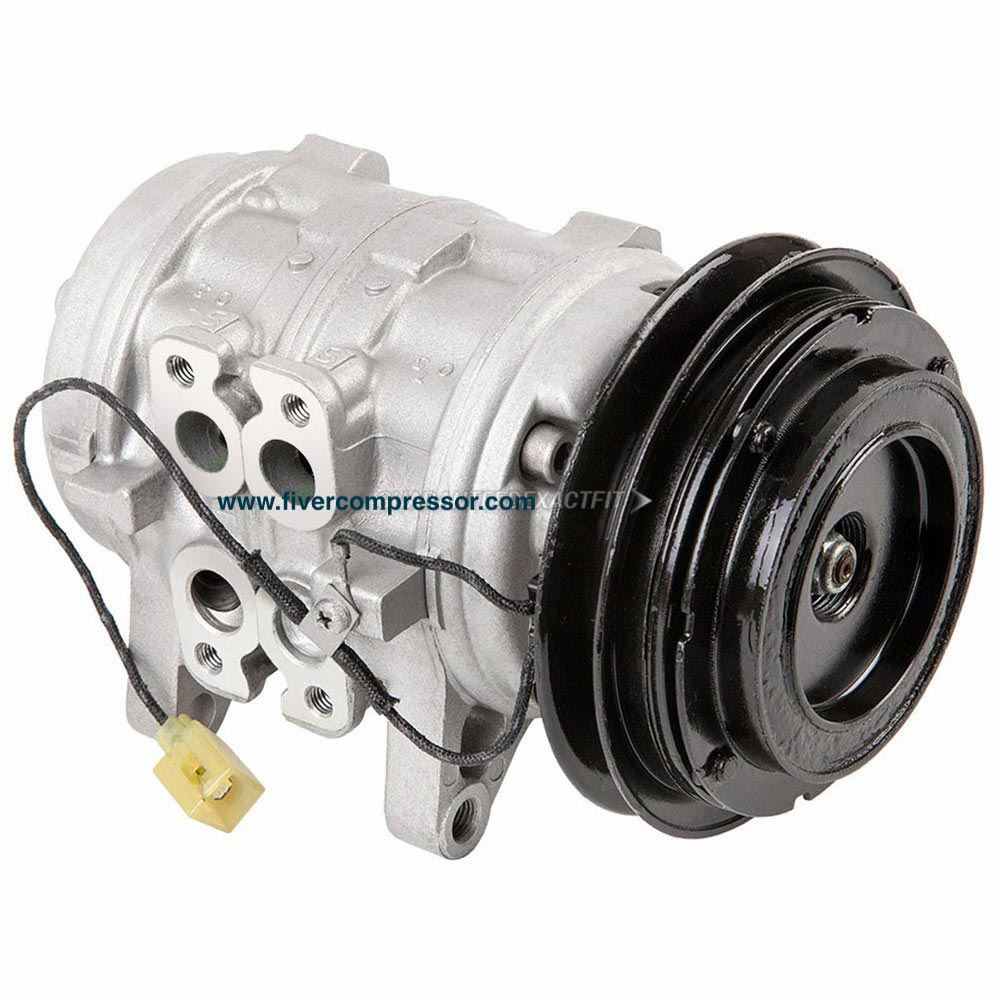

Toyota 10P13A A/C compressor

10P13A A/C Compressor 88320-16030,88320-16031 for Toyota TERCEL Frame AL21/AL25 Engine 3AC 1982-1988 and Ford Festiva 1990-1993

OE / Part number
88320-16030, 88320-16031, 88410-12180, 8832016030, 8832016031, 8841012180, 19192884, 883201603084, 8841001010

Compressor is used into the air conditional’s system, the compressor takes the refrigerant gas from the evaporator, compress it, and send it to the strip heater. This is activated from the crankshaft

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10P13A
GrooveA1

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10P13A
GrooveA1
Coil Voltage12V
OE / Part number88320-16030, 88320-16031, 88410-12180, 8832016030, 8832016031, 8841012180, 19192884, 883201603084, 8841001010
ApplicationApplications: FORD

§ 04

Product details

10P13A A/C Compressor 88320-16030,88320-16031 for Toyota TERCEL Frame AL21/AL25 Engine 3AC 1982-1988 and Ford Festiva 1990-1993

 Specifications
Refrigerant TypeR-134A
Pulley Groove Quantity1
Clutch IncludedYes
Belt TypeV-Belt
Coil Clock PositionWire Lead
Compressor Type10P13A
Clutch Pulley Diameter5.375
Coil Voltage12
Mounting TypeEar Mount
Distance Between Mounting Holes1.796875
Belt Width MM12.700
DescriptionCompressors - Reman
Discharge Port TypePad Mount
Ctch Dia. MM Prmy136.525
New or RemanRemanufactured
Printed Foot NoteMay Require use of OE Manifold
O-Ring A Quantity4
Oil TypePAG 46
Suction Port TypePad Mount
O-Ring A Number/Desc[24613] / Green O-Ring
Mount Distance MM45.720
Belt Width IN0.500

Applications:

FORD

1990 Ford Festiva Without PWR STEERING with FACTORY AIR
1991 Ford Festiva Without PWR STEERING with FACTORY AIR
1992 Ford Festiva Without PWR STEERING with FACTORY AIR
1993 Ford Festiva Without PWR STEERING with FACTORY AIR


TOYOTA

  • 1982 Toyota Tercel With 10P13A Compressor
  • 1983 Toyota Tercel With 10P13A Compressor
  • 1984 Toyota Tercel With 10P13A Compressor
  • 1985 Toyota Tercel With 10P13A Compressor
  • 1986 Toyota Tercel With 10P13A Compressor
  • 1987 Toyota Tercel With 10P13A Compressor
  • 1988 Toyota Tercel With 10P13A Compressor
Alternate/OEM Part Number(s): 19192884, 8832016030, 883201603084, 8832016031, 8841001010, 8841012180
