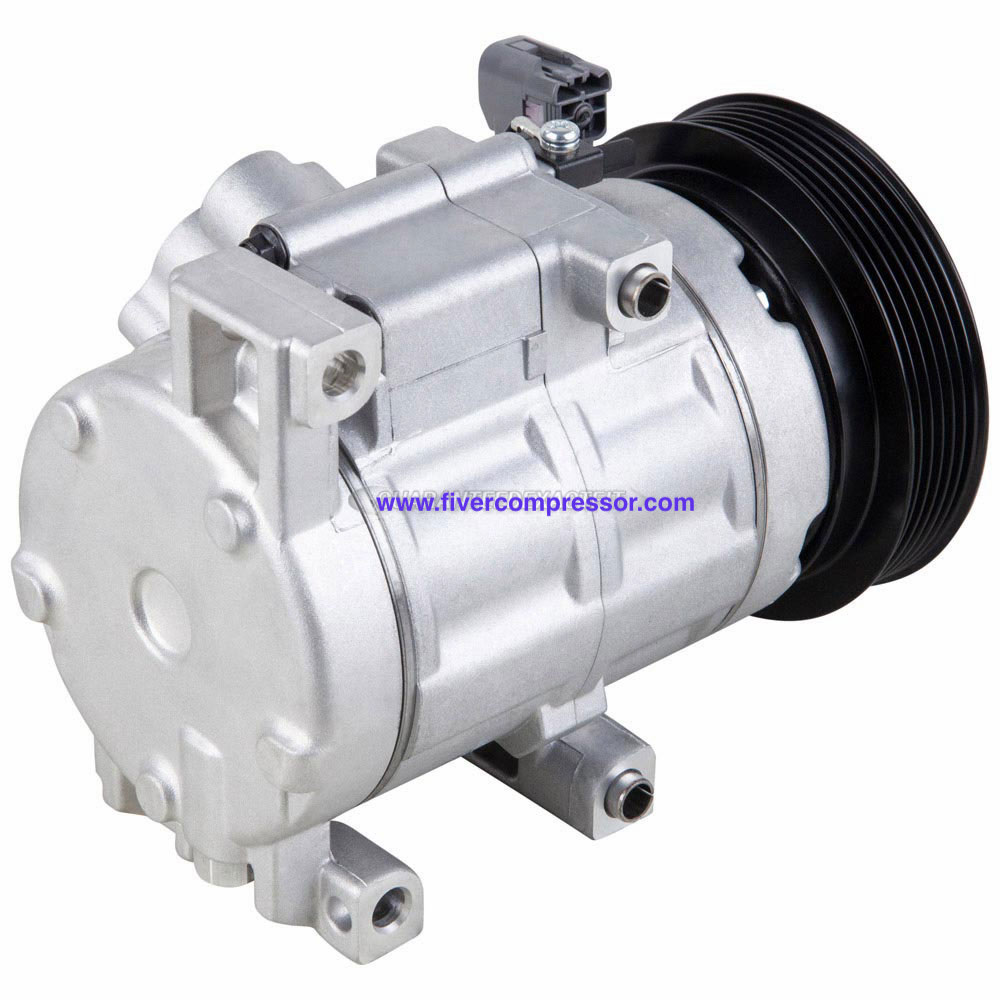

Brand New HS18N 6PV Auto A/C Compressor EG2161450, EG2161450D, EG2161450F for Mazda CX-7 2.3L L4 2009-2012
- Compressor Type: HS18N
- Pulley Groove: 6PK
- Coil Voltage: 12V
- Product description: Compressor Assy Cooler; Auto A/C Compressor for Mazda CX-7 2009-2012; Compressor Assy, W/pulley
Product introduction
Brand New HS18N 6 Grooves Auto A/C Compressor EG2161450, EG2161450D, EG2161450F for Mazda CX-7 2.3L L4 2009-2012
| Specifications | |
|---|---|
| Clutch Included | Included |
| Clutch Maximum Diameter | 4.703125 in |

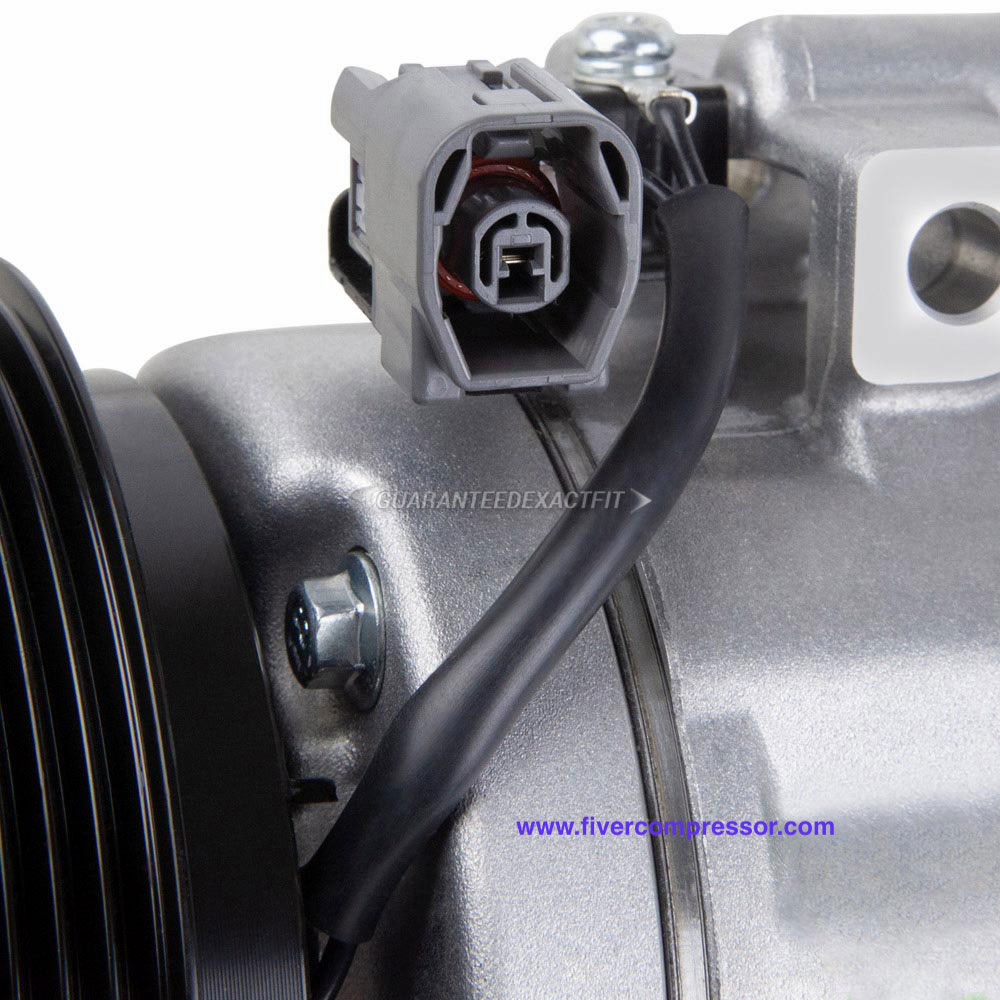

| Coil Clock Position | 1 Wire Lead |
| Coil Voltage | 12 2H |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | HS18 |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 2.53125 in |
| Mount Distance MM | 64.262 mm |
|
|
|
| Oil Filled | Yes |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 119.634 mm |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.703125 in |
| Pulley Ridge Diameter | 4.703125 in |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| Type | FORD |
VEHICLE FITMENT
2010 Mazda CX-7 All Models
2011 Mazda CX-7 All Models
2012 Mazda CX-7 All Models
2009 Mazda CX-7 w/ Halla/Hannon Compressor
Alternate/OEM Part Number(s): EG2161450D, EG2161450E, EG2161450F, EG2161450G, EG2161K00C, L4500EG22B08
